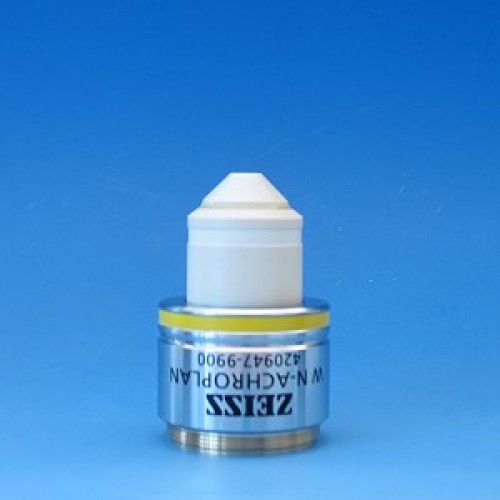

Objective W N-Achroplan 10x/0.3 M27 (FWD=2.6mm)
| Технические характеристики | |
| Objective Class | W N-Achroplan |
| Magnification | 10x |
| Numerical Aperture | 0.3 |
| Free Working Distance [mm] | 2.6 |
| Coverglass Thickness [mm] | 0 |
| Thread Type | M27x0,75 |
| Immersion | Water |
| Field of View [mm] | 23 |
| Parfocal Length [mm] | 45.00 |
| Long Distance (LD) | |
| Correction Ring (Corr) | |
| Iris (Iris) | |
| Optical System | Infinity-Color-Corrected System (ICS) |
| Flatness | ++ |
| Color Correction | +++ |
| Biomedical Applications | |
| Fluorescence | # |
| Fluorescence Multichannel | ++ |
| Fluorescence Ultraviolet Transmission | ++ |
| Fluorescence Infra Red Transmission | +++ |
| BrightField (B) | # |
| Differential Interference Contrast (DIC) | +++ |
| High Contrast DIC (HC DIC) | |
| PlasDIC Contrast | |
| Phase Contrast (PH) | |
| VAREL Contrast | |
| Hoffman Modulation Contrast (HMC) | |
| Polarization Contrast (POL) | |
| Materials (Reflected Light) Applications | |
| BrightField (B) | # |
| BrightField/DarkField (BD) | |
| Reflected Light DIC (RL DIC) | |
| High Contrast DIC (HC DIC) | |
| DIC with circular polarized light (C-DIC) | |
| Total Interference Contrast (TIC) | |
| Polarization Contrast (POL) | |
| Options | |
| Definite Focus.2 | |
| Confocal Microscopy | # |
| Confocal Microscopy - Ultra Violet | + |
| Confocal Microscopy - VIS (visible light) | + |
| NLO-IR / 2 Photon | + |
| Total Internal Reflection Fluorescence (TIRF) | |
| ApoTome | |
| Microdissection | |
