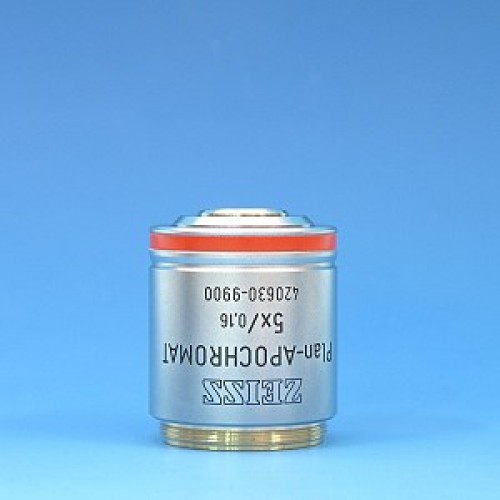

Objective Plan-Apochromat 5x/0.16 M27 (FWD=12.1mm)
| Технические характеристики | |
| Objective Class | Plan-Apochromat SF25 |
| Magnification | 5x |
| Numerical Aperture | 0.16 |
| Free Working Distance [mm] | 12.1 |
| Coverglass Thickness [mm] | 0.17 |
| Thread Type | M27x0,75 |
| Immersion | Without Immersion |
| Field of View [mm] | 25 |
| Parfocal Length [mm] | 45.06 |
| Long Distance (LD) | |
| Correction Ring (Corr) | |
| Iris (Iris) | |
| Optical System | Infinity-Color-Corrected System (ICS) |
| Flatness | +++++ |
| Color Correction | +++++ |
| Biomedical Applications | |
| Fluorescence | # |
| Fluorescence Multichannel | +++++ |
| Fluorescence Ultraviolet Transmission | +++ |
| Fluorescence Infra Red Transmission | ++++ |
| BrightField (B) | # |
| Differential Interference Contrast (DIC) | |
| High Contrast DIC (HC DIC) | |
| PlasDIC Contrast | |
| Phase Contrast (PH) | |
| VAREL Contrast | |
| Hoffman Modulation Contrast (HMC) | |
| Polarization Contrast (POL) | |
| Materials (Reflected Light) Applications | |
| BrightField (B) | # |
| BrightField/DarkField (BD) | |
| Reflected Light DIC (RL DIC) | |
| High Contrast DIC (HC DIC) | |
| DIC with circular polarized light (C-DIC) | |
| Total Interference Contrast (TIC) | |
| Polarization Contrast (POL) | |
| Options | |
| Definite Focus.2 | ++++ |
| Confocal Microscopy | # |
| Confocal Microscopy - Ultra Violet | +++ |
| Confocal Microscopy - VIS (visible light) | +++++ |
| NLO-IR / 2 Photon | ++ |
| Total Internal Reflection Fluorescence (TIRF) | |
| ApoTome | |
| Microdissection | |
