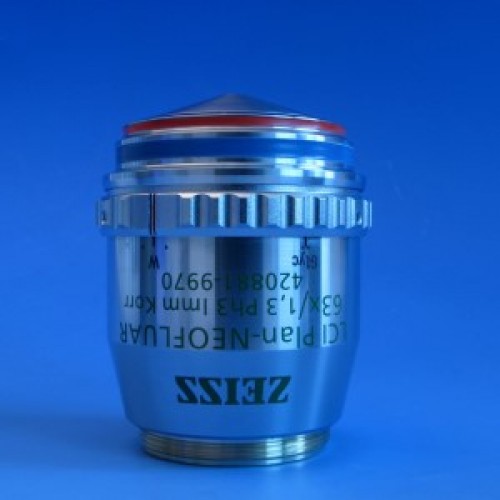

Objective LCI Plan-Neofluar 63x/1.3 Imm Corr Ph3 M27 for water, silicone oil or glycerine immersion (D=0.15-0.19mm) (WD=0.17mm at D=0.17mm) incl. Immersol W, bottle 20 ml and Cover glasses, high performance, D=0.17mm, box with 100 pc.
| Технические характеристики | |
| Objective Class | LCI Plan-Neofluar |
| Magnification | 63x |
| Numerical Aperture | 1.3 |
| Free Working Distance [mm] | 0.17 at cover glass 0.17 |
| Coverglass Thickness [mm] | 0.15 - 0.19 |
| Thread Type | M27x0,75 |
| Immersion | Water, Silicone oil and Glycerine |
| Field of View [mm] | 20 |
| Parfocal Length [mm] | 45.06 |
| Long Distance (LD) | |
| Correction Ring (Corr) | # |
| Iris (Iris) | |
| Optical System | Infinity-Color-Corrected System (ICS) |
| Flatness | ++++ |
| Color Correction | ++++ |
| Biomedical Applications | |
| Fluorescence | # |
| Fluorescence Multichannel | ++++ |
| Fluorescence Ultraviolet Transmission | +++ |
| Fluorescence Infra Red Transmission | ++++ |
| BrightField (B) | # |
| Differential Interference Contrast (DIC) | |
| High Contrast DIC (HC DIC) | |
| PlasDIC Contrast | |
| Phase Contrast (PH) | Ph3 |
| VAREL Contrast | |
| Hoffman Modulation Contrast (HMC) | |
| Polarization Contrast (POL) | |
| Materials (Reflected Light) Applications | |
| BrightField (B) | # |
| BrightField/DarkField (BD) | |
| Reflected Light DIC (RL DIC) | |
| High Contrast DIC (HC DIC) | |
| DIC with circular polarized light (C-DIC) | |
| Total Interference Contrast (TIC) | |
| Polarization Contrast (POL) | |
| Options | |
| Definite Focus.2 | +++ |
| Confocal Microscopy | # |
| Confocal Microscopy - Ultra Violet | ++++ |
| Confocal Microscopy - VIS (visible light) | ++++ |
| NLO-IR / 2 Photon | ++ |
| Total Internal Reflection Fluorescence (TIRF) | |
| ApoTome | |
| Microdissection | |
Теги: Objective LCI Plan-Neofluar 63x/1.3 Imm Corr Ph3 M27, 420881-9970-000, Zeiss, LCI Plan-Neofluar
