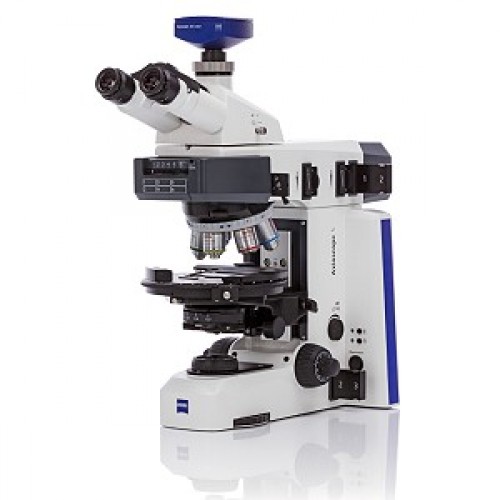

Microscope Axioscope 5 Pol RL, TL for transmitted light LED and reflected light LED with binocular phototube Pol 20°/23, advanced optical equipment
Parts List and Accessories | |
Bertrand system module Pol P&C with analyzer | K: 424941-9040-000 |
Filter slider D 14x40 mm, 2 positions for filter diameter 36 mm | K: 423910-9000-000 |
Microscope Axioscope 5 Pol RL, TL, Bertrand lens | K: 490040-0024-000 |
Reflector module DIC/Pol ACR P&C shift free for reflected light | K: 424939-9000-000 |
Attachable object guide Pol, 28x48 mm | K: 453561-9901-000 |
Binocular phototube Pol 20°/23 (100:0/0:100), upright image | K: 425520-9100-000 |
Condenser, achromatic-aplanatic 0.9 H Pol | K: 424225-9090-000 |
Microscope stand Axioscope 5, TL/RL POL, 5xHD/Pol, 1xHD/DIC encoded | K: 430035-9291-000 |
Reflector turret 6x encoded, changeable, for P&C modules | K: 424940-9001-000 |
Condenser carrier with vertical adjustment on both sides | K: 430720-9001-000 |
Eyepiece PL 10x/23 Br. foc. Pol with crossline graticule | K: 444038-9000-000 |
Filter set D | K: 000000-1058-230 |
Filter slider A 14x40 mm, 3 positions for filter diameter 25 mm | K: 423730-9080-000 |
Polarizer D, 90° rotatable, removable | K: 427706-0000-000 |
Quartz depolarizer with tube-lens for tubes Axio Scope.A1 | K: 428106-9010-000 |
Stage carrier TL/RL; attachable and vertically adjustable | K: 430710-9011-000 |
Compensator Lambda, 6x20 | K: 473704-0000-000 |
Grey filter 0.06, d=25x2 | K: 447835-0000-000 |
Rotary stage Pol, 360° with 45° clickstops | K: 432035-9131-000 |
Grey filter 0.25, d=25x2 | K: 447836-0000-000 |
Objective EC Epiplan-Neofluar 10x/0.25 Pol M27 | K: 422343-9900-000 |
Objective EC Epiplan-Neofluar 2.5x/0.06 Pol M27 | K: 422323-9900-000 |
Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
Analyzer module Pol ACR P&C for transmitted light | K: 424937-9901-000 |
Objective EC Epiplan-Neofluar 20x/0.50 Pol M27 | K: 000000-1156-522 |
Objective EC Epiplan-Neofluar 50x/0.8 Pol M27 | K: 422373-9800-000 |
Objective EC Plan-Neofluar 20x/0.50 Pol M27 | K: 420353-9900-000 |
Objective EC Plan-Neofluar 40x/0.9 Pol M27 | K: 420363-9901-000 |
Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
Eyepiece eyecup | K: 444801-0000-000 |
Теги: Microscope Axioscope 5 Pol RL, TL, Bertrand lens, 490040-0024-000, Zeiss, Axioscope 5 Pol
