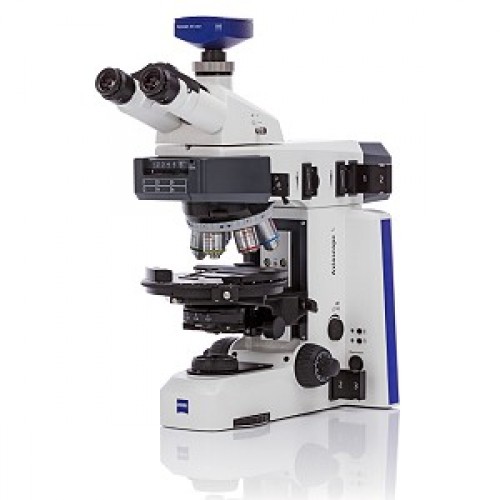

Microscope Axioscope 5 Pol RL, TL, Bertrand for transmitted light LED and reflected light LED with binocular phototube Pol 20°/23
| Parts List and Accessories | |
| Bertrand system module Pol P&C with analyzer | K: 424941-9040-000 |
| Filter slider D 14x40 mm, 2 positions for filter diameter 36 mm | K: 423910-9000-000 |
| Microscope Axio Scope 5 Pol RL, TL, Bertrand | K: 490040-0023-000 |
| Reflector module DIC/Pol ACR P&C shift free for reflected light | K: 424939-9000-000 |
| Attachable object guide Pol, 28x48 mm | K: 453561-9901-000 |
| Binocular phototube Pol 20°/23 (100:0/0:100), upright image | K: 425520-9100-000 |
| Microscope stand Axioscope 5, TL/RL POL, 5xHD/Pol, 1xHD/DIC encoded | K: 430035-9291-000 |
| Objective EC Epiplan 10x/0.25 Pol M27 | K: 422043-9902-000 |
| Reflector turret 6x encoded, changeable, for P&C modules | K: 424940-9001-000 |
| Condenser carrier with vertical adjustment on both sides | K: 430720-9001-000 |
| Eyepiece PL 10x/23 Br. foc. Pol with crossline graticule | K: 444038-9000-000 |
| Filter set D | K: 000000-1058-230 |
| Filter slider A 14x40 mm, 3 positions for filter diameter 25 mm | K: 423730-9080-000 |
| Objective EC Epiplan 50x/0.75 Pol M27 | K: 422073-9902-000 |
| Polarizer D, 90° rotatable, removable | K: 427706-0000-000 |
| Quartz depolarizer with tube-lens for tubes Axio Scope.A1 | K: 428106-9010-000 |
| Stage carrier TL/RL; attachable and vertically adjustable | K: 430710-9011-000 |
| Compensator Lambda, 6x20 | K: 473704-0000-000 |
| Grey filter 0.06, d=25x2 | K: 447835-0000-000 |
| Objective N-Achroplan 20x/0.45 Pol M27 | K: 420953-9901-000 |
| Rotary stage Pol, 360° with 45° clickstops | K: 432035-9131-000 |
| Grey filter 0.25, d=25x2 | K: 447836-0000-000 |
| Objective N-Achroplan 50x/0.8 Pol M27 | K: 420973-9900-000 |
| Objective N-Achroplan 5x/0.15 Pol M27 | K: 420933-9901-000 |
| Condenser 0.9 H Pol | K: 424225-9080-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Analyzer module Pol ACR P&C for transmitted light | K: 424937-9901-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
Теги: Microscope Axio Scope 5 Pol RL, TL, Bertrand, 490040-0023-000, Zeiss, Axioscope 5 Pol
