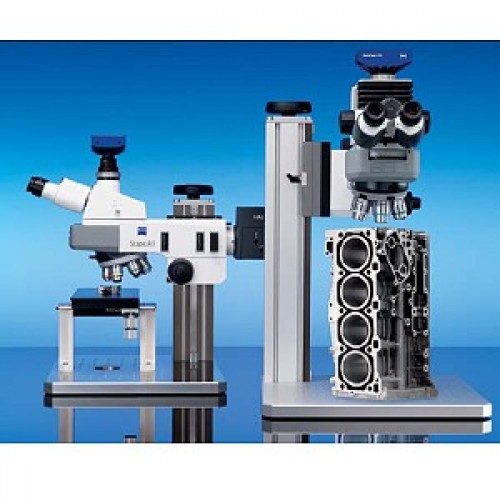

Reflected-light microscope Axio Scope Vario HAL 100 for reflected-light bright field, dark field and DIC, with phototube
| Parts List and Accessories | |
| Binocular Ergophototube 5-30°/23 (100:0/0:100), upright image | K: 425520-9040-000 |
| Filter slider A 14x40 mm, 2 positions for filter diameter 25 mm | K: 428307-9000-000 |
| Illumination adapter A, achromatic, Axio Scope, Axio Examiner.A1 | K: 423730-9091-000 |
| Reflected-light microscope Axio Scope Vario | K: 490036-0014-000 |
| Reflector module DIC/Pol ACR P&C shift free for reflected light | K: 424939-9000-000 |
| Upper stand part Axio Scope.A1 HAL 100/HBO, 6x HD DIC, M27 | K: 423730-9070-000 |
| DIC slider EC EP 5x/0.13; 10x/0.2; 20x/0.4 Epi+ | K: 426968-9100-000 |
| Power supply external for HAL 100 and LED lamps | K: 432610-9060-000 |
| Reflector module dark field ACR P&C for reflected light | K: 424922-9901-000 |
| Reflector turret 4x man., changeable, for P&C modules | K: 424940-9060-000 |
| Stop slider A 14x40 mm with aperture/luminous field diaphragm | K: 423730-9151-000 |
| DIC slider EC EP 50x/0.7 Epi+ | K: 426968-9030-000 |
| Focusing gear box Axio Scope Vario, 15 mm focus lift | K: 430036-9001-000 |
| Grey filter 0.06, d=25x2 | K: 447835-0000-000 |
| Mechanical stage 75x50 R for reflected light | K: 453527-9903-000 |
| Stand column Axio Scope Vario, 380 mm (D) | K: 451017-9010-000 |
| Grey filter 0.25, d=25x2 | K: 447836-0000-000 |
| Stage carrier H=140 mm for base plate Axio Scope Vario | K: 451016-9902-000 |
| Objective EC Epiplan 10x/0.25 BD M27 | K: 422040-9961-000 |
| Objective EC Epiplan 20x/0.4 BD M27 | K: 422050-9961-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Objective EC Epiplan 50x/0.75 BD M27 | K: 422070-9961-000 |
| Objective EC Epiplan 5x/0.13 BD M27 | K: 422030-9961-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Stop slider A 14x40 mm with luminous-field diaphragm | K: 423730-9100-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
| Extension cable 2 m for illuminators HAL 100/LED | K: 457411-9051-000 |
Теги: Reflected-light microscope Axio Scope Vario, 490036-0014-000, Zeiss, Axio Scope.A1 Vario
