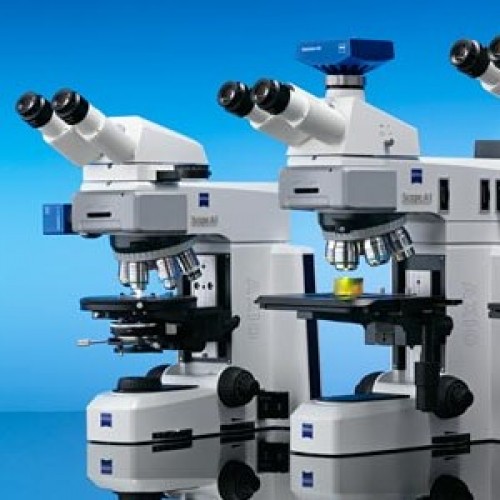

Microscope Axio Scope.A1 Pol HAL 50 for transmitted light with binocular phototube 30°/23
| Parts List and Accessories | |
| Bertrand system module Pol P&C with analyzer | K: 424941-9040-000 |
| Microscope Axio Scope.A1 Pol HAL 50 | K: 490038-0003-000 |
| Condenser, achromatic-aplanatic 0.9 H Pol | K: 424225-9090-000 |
| Crossline micrometer 10:100, d=26 mm | K: 474066-9901-000 |
| Microscope stand Axio Scope.A1 HAL 50, 5x H/Pol, 1x H/DIC | K: 430035-9250-000 |
| Reflector turret 4x man., changeable, for P&C modules | K: 424940-9060-000 |
| Rotary stage Pol, 360° with 45° clickstops (freely defineable) | K: 432035-9130-000 |
| White-balance filter, d=36x2 mm | K: 447810-9010-000 |
| Binocular phototube 30°/23 (50:50), reversed image | K: 425520-9010-000 |
| Bulb 12V 50W Halogen Reflector GU5.3 | K: 000000-0488-372 |
| Condenser carrier with vertical adjustment on both sides | K: 430720-9001-000 |
| Objective N-Achroplan 10x/0.25 Pol M27 | K: 420943-9901-000 |
| Pol adjusting aid | K: 453679-0000-000 |
| Quartz depolarizer with tube-lens for tubes Axio Scope.A1 | K: 428106-9010-000 |
| Stage carrier D/A; attachable and vertically adjustable | K: 430710-9010-000 |
| Compensator Lambda, 6x20 | K: 473704-0000-000 |
| Objective N-Achroplan 20x/0.45 Pol M27 | K: 420953-9901-000 |
| Polarizer D, fixed, removable | K: 427701-0000-000 |
| Objective N-Achroplan 50x/0.8 Pol M27 | K: 420973-9900-000 |
| Objective N-Achroplan 5x/0.15 Pol M27 | K: 420933-9901-000 |
| Analyzer module Pol ACR P&C for transmitted light | K: 424937-9901-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
Теги: Microscope Axio Scope.A1 Pol HAL 50, 490038-0003-000, Zeiss, Axio Scope.A1 Pol
