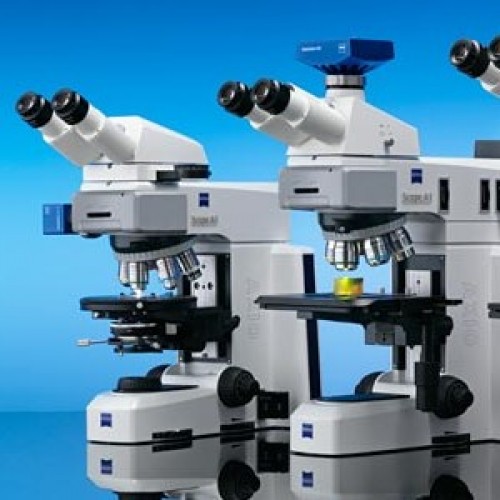

Microscope Axio Scope.A1 A Pol for transmitted light HAL 100 and reflected light HAL 100 with binocular phototube Pol 20°/23, advanced optical equipment
| Parts List and Accessories | |
| Bertrand system module Pol P&C with analyzer | K: 424941-9040-000 |
| Filter slider D 14x40 mm, 2 positions for filter diameter 36 mm | K: 423910-9000-000 |
| Illumination adapter A, achromatic, Axio Scope, Axio Examiner.A1 | K: 423730-9091-000 |
| Microscope Axio Scope.A1 A Pol | K: 490038-0009-000 |
| Microscope stand Axio Scope.A1 HAL100, HAL100/HBO, 5xHD/Pol, 1xHD/DIC | K: 430035-9290-000 |
| Reflector module DIC/Pol ACR P&C shift free for reflected light | K: 424939-9000-000 |
| Reflector turret 6x man., changeable, for P&C modules | K: 424940-9000-000 |
| Attachable object guide Pol, 28x48 mm | K: 453561-9901-000 |
| Binocular phototube Pol 20°/23 (100:0/0:100), upright image | K: 425520-9100-000 |
| Condenser, achromatic-aplanatic 0.9 H Pol | K: 424225-9090-000 |
| Power supply external for HAL 100 and LED lamps | K: 432610-9060-000 |
| Rotary stage Pol, 360° with 45° clickstops (freely defineable) | K: 432035-9130-000 |
| Stop slider A 14x40 mm with aperture/luminous field diaphragm | K: 423730-9151-000 |
| White-balance filter, d=36x2 mm | K: 447810-9010-000 |
| Condenser carrier with vertical adjustment on both sides | K: 430720-9001-000 |
| Eyepiece PL 10x/23 Br. foc. Pol with crossline graticule | K: 444038-9000-000 |
| Filter set D | K: 000000-1058-230 |
| Filter slider A 14x40 mm, 3 positions for filter diameter 25 mm | K: 423730-9080-000 |
| Polarizer D, 90° rotatable, removable | K: 427706-0000-000 |
| Quartz depolarizer with tube-lens for tubes Axio Scope.A1 | K: 428106-9010-000 |
| Stage carrier D/A; attachable and vertically adjustable | K: 430710-9010-000 |
| Compensator Lambda, 6x20 | K: 473704-0000-000 |
| Grey filter 0.06, d=25x2 | K: 447835-0000-000 |
| Grey filter 0.25, d=25x2 | K: 447836-0000-000 |
| Objective EC Epiplan-Neofluar 10x/0.25 Pol M27 | K: 422343-9900-000 |
| Objective EC Epiplan-Neofluar 2.5x/0.06 Pol M27 | K: 422323-9900-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Analyzer module Pol ACR P&C for transmitted light | K: 424937-9901-000 |
| Objective EC Epiplan-Neofluar 20x/0.50 Pol M27 | K: 000000-1156-522 |
| Objective EC Epiplan-Neofluar 50x/0.8 Pol M27 | K: 422373-9800-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Stop slider A 14x40 mm with luminous-field diaphragm | K: 423730-9100-000 |
| Objective EC Plan-Neofluar 20x/0.50 Pol M27 | K: 420353-9900-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Objective EC Plan-Neofluar 40x/0.9 Pol M27 | K: 420363-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
Теги: Microscope Axio Scope.A1 A Pol, 490038-0009-000, Zeiss, Axio Scope.A1 Pol
