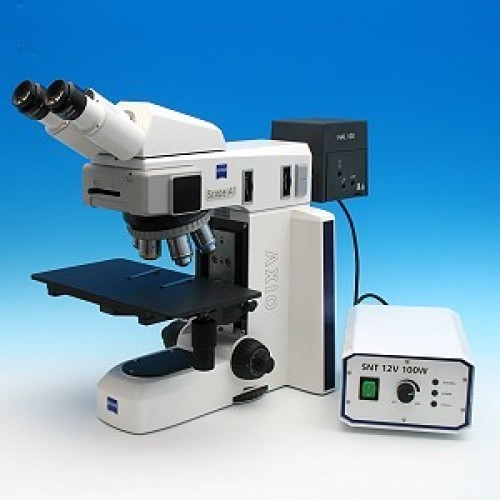

Microscope Axio Scope.A1 MAT LED for reflected-light bright field, dark field and C-DIC, with phototube
| Parts List and Accessories | |
| Illumination adapter A, achromatic, Axio Scope, Axio Examiner.A1 | K: 423730-9091-000 |
| Microscope Axio Scope.A1 MAT | K: 490036-0005-000 |
| Microscope stand Axio Scope.A1 LED, HAL 100/HBO, 6x HD DIC | K: 430035-9090-000 |
| Reflector module C-DIC/TIC ACR P&C for reflected light | K: 424941-9000-000 |
| Binocular phototube 20°/23 (100:0/0:100), upright image | K: 425520-9030-000 |
| C-DIC slider 6x20 for EC EPN 5x-20x/LD EC EPN 20x-50x/EC EP 5x-100x | K: 000000-1105-192 |
| Reflector module dark field ACR P&C for reflected light | K: 424922-9901-000 |
| Reflector turret 4x man., changeable, for P&C modules | K: 424940-9060-000 |
| Stop slider A 14x40 mm with aperture/luminous field diaphragm | K: 423730-9151-000 |
| Filter slider A 14x40 mm, 3 positions for filter diameter 25 mm | K: 423730-9080-000 |
| Stage carrier D/A; attachable and vertically adjustable | K: 430710-9001-000 |
| Mechanical stage 75x50 R for reflected light | K: 453527-9903-000 |
| Objective EC Epiplan 10x/0.25 BD M27 | K: 422040-9961-000 |
| Objective EC Epiplan 20x/0.4 BD M27 | K: 422050-9961-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Illuminator microLED 2 | K: 423053-9072-000 |
| Objective EC Epiplan 50x/0.75 BD M27 | K: 422070-9961-000 |
| Objective EC Epiplan 5x/0.13 BD M27 | K: 422030-9961-000 |
| Conversion filter 5700-3200 K, d=25 mm | K: 427809-9010-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Stop slider A 14x40 mm with luminous-field diaphragm | K: 423730-9100-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
