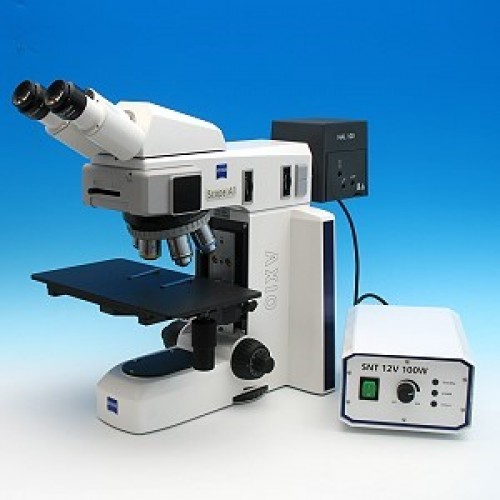

Microscope Axio Scope.A1 for HBO 50 epi-fluorescence in combination with HAL 50 transmitted-light, Ergophototube
| Parts List and Accessories | |
| Filter slider A 14x40 mm, 2 positions for filter diameter 25 mm | K: 428307-9000-000 |
| Filter slider D 14x40 mm, 2 positions for filter diameter 36 mm | K: 423910-9000-000 |
| Microscope Axio Scope.A1 | K: 490035-0017-000 |
| Microscope stand Axio Scope.A1 HAL 50, HAL 100/HBO, 6x HD | K: 430035-9100-000 |
| Filter set 01 shift free (F) | K: 488001-9901-000 |
| HBO 50 illuminator with collector | K: 423003-9000-000 |
| Objective EC Plan-Neofluar 5x/0.16 M27 | K: 420330-9901-000 |
| Reflector turret 4x man., changeable, for P&C modules | K: 424940-9060-000 |
| White-balance filter, d=36x2 mm | K: 447810-9010-000 |
| Bulb 12V 50W Halogen Reflector GU5.3 | K: 000000-0488-372 |
| Burner Mercury - HBO 50 AC L1 (F) | K: 381619-0000-000 |
| Condenser carrier with vertical adjustment on both sides | K: 430720-9001-000 |
| Stage carrier D/A; attachable and vertically adjustable | K: 430710-9001-000 |
| Antiglare screen | K: 452163-0000-000 |
| Power supply unit for HBO 50 | K: 432607-0000-000 |
| Specimen holder basic for one-hand operation, spring lever left | K: 432333-9000-000 |
| Filter set 09 shift free (F) | K: 488009-9901-000 |
| Filter set 15 shift free (F) | K: 488015-0000-000 |
| Binocular Ergophototube 20°/23 (100:0/0:100), reversed image | K: 425512-0000-000 |
| Condenser, achromatic-aplanatic 0.9 H | K: 424225-9060-000 |
| Objective EC Plan-Neofluar 10x/0.3 M27 | K: 420340-9901-000 |
| Objective EC Plan-Neofluar 20x/0.50 M27 | K: 420350-9900-000 |
| Objective EC Plan-Neofluar 40x/0.75 M27 | K: 420360-9900-000 |
| Mechanical stage 75x50 R with hardcoat anodized surface | K: 432035-9000-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Reflector module FL EC P&C | K: 424931-0000-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
