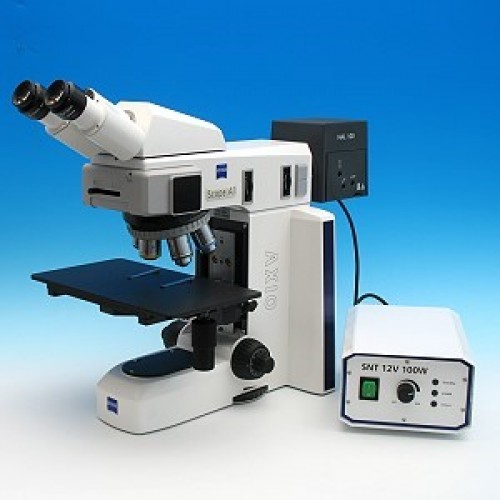

Microscope Axio Scope.A1 for LED epi-fluorescence in combination with HAL 100 transmitted-light phase contrast, Ergophototube
| Parts List and Accessories | |
| Filter slider D 14x40 mm, 2 positions for filter diameter 36 mm | K: 423910-9000-000 |
| Microscope Axio Scope.A1 | K: 490035-0015-000 |
| Microscope stand Axio Scope.A1 HAL 100, FL-LED, 3x H, 3x DIC | K: 430035-9070-000 |
| LED module 470 nm for Axio | K: 423052-9572-000 |
| LED module neutral white 540-580 nm for Axio | K: 423052-9601-000 |
| Power supply external for HAL 100 and LED lamps | K: 432610-9060-000 |
| White-balance filter, d=36x2 mm | K: 447810-9010-000 |
| Condenser carrier with vertical adjustment on both sides | K: 430720-9001-000 |
| Stage carrier D/A; attachable and vertically adjustable | K: 430710-9001-000 |
| Antiglare screen | K: 452163-0000-000 |
| Objective N-Achroplan 100x/1.25 Oil M27 | K: 420990-9900-000 |
| Pinhole diaphragm, d=30mm | K: 444020-0000-000 |
| Specimen holder basic for one-hand operation, spring lever left | K: 432333-9000-000 |
| Condenser 0.9/1.25 H | K: 424225-9001-000 |
| Filter set 09 shift free (F) | K: 488009-9901-000 |
| Binocular Ergophototube 20°/23 (100:0/0:100), reversed image | K: 425512-0000-000 |
| Objective N-Achroplan 40x/0.65 Ph2 M27 | K: 420961-9911-000 |
| Modulator disk H, D 0.65, Ph 1,2,3 PlasDIC for condenser 0.9/1.25 | K: 424225-9010-000 |
| Objective A-Plan 10x/0,25 M27 | K: 421040-9900-000 |
| Mechanical stage 75x50 R with hardcoat anodized surface | K: 432035-9000-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Reflector module FL EC P&C | K: 424931-0000-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Filter set 43 Cy 3, d=25 shift free (E) | K: 000000-1114-101 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
