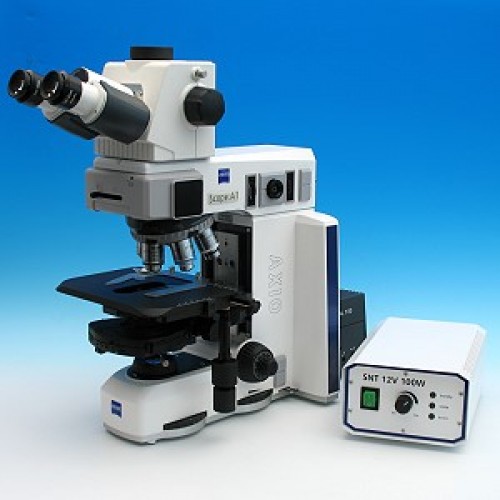

Microscope Axio Scope.A1 HAL 100 for transmitted-light bright field and DIC with Ergophototube
| Parts List and Accessories | |
| Condenser, achromatic-aplanatic 0.9 H D Ph DIC | K: 424225-9070-000 |
| Filter slider D 14x40 mm, 2 positions for filter diameter 36 mm | K: 423910-9000-000 |
| Microscope Axio Scope.A1 | K: 490035-0012-000 |
| Microscope stand Axio Scope.A1 HAL 100, FL/HBO, 3x H, 3x DIC | K: 430035-9060-000 |
| Power supply external for HAL 100 and LED lamps | K: 432610-9060-000 |
| White-balance filter, d=36x2 mm | K: 447810-9010-000 |
| Analyzer module DIC ACR P&C for transmitted light | K: 424921-9901-000 |
| Condenser carrier with vertical adjustment on both sides | K: 430720-9001-000 |
| DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II | K: 426940-0000-000 |
| Filter set D | K: 000000-1058-230 |
| Stage carrier D/A; attachable and vertically adjustable | K: 430710-9001-000 |
| DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III | K: 426945-0000-000 |
| Reflector slider 2x, changeable, for P&C modules | K: 424940-9050-000 |
| Specimen holder basic for one-hand operation, spring lever left | K: 432333-9000-000 |
| Binocular Ergophototube 20°/23 (100:0/0:100), reversed image | K: 425512-0000-000 |
| Condenser module DIC I/0.9 with polarizer | K: 426715-9020-000 |
| Objective EC Plan-Neofluar 100x/1.30 Oil M27 | K: 420490-9900-000 |
| Condenser module DIC II/0.9 with polarizer | K: 426715-9030-000 |
| Objective EC Plan-Neofluar 10x/0.3 M27 | K: 420340-9901-000 |
| Condenser module DIC III/0.9 with polarizer | K: 426715-9040-000 |
| Objective EC Plan-Neofluar 2.5x/0.085 M27 | K: 420320-9902-000 |
| Objective EC Plan-Neofluar 20x/0.50 M27 | K: 420350-9900-000 |
| Objective EC Plan-Neofluar 40x/0.75 M27 | K: 420360-9900-000 |
| Mechanical stage 75x50 R with hardcoat anodized surface | K: 432035-9000-000 |
| Dust protection Set M | K: 434303-0000-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
