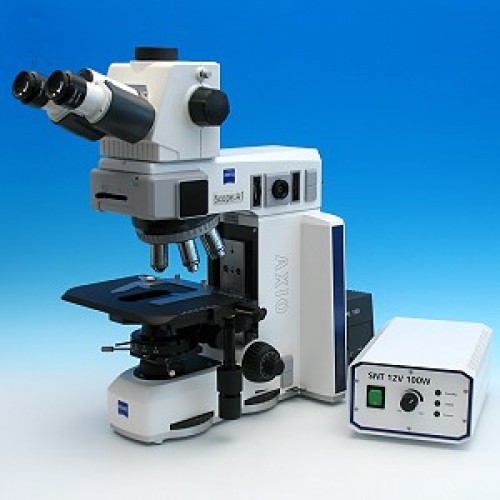

Microscope Axio Scope.A1 HAL 100 for transmitted-light bright field for PlasDIC with Ergophototube
| Parts List and Accessories | |
| Filter slider D 14x40 mm, 2 positions for filter diameter 36 mm | K: 423910-9000-000 |
| Microscope Axio Scope.A1 | K: 490035-0010-000 |
| Microscope stand Axio Scope.A1 HAL 100, FL/HBO, 3x H, 3x DIC | K: 430035-9060-000 |
| Power supply external for HAL 100 and LED lamps | K: 432610-9060-000 |
| Slider PlasDIC for A-Plan 10x/0.25 | K: 426980-9020-000 |
| White-balance filter, d=36x2 mm | K: 447810-9010-000 |
| Condenser carrier with vertical adjustment on both sides | K: 430720-9001-000 |
| Filter set D | K: 000000-1058-230 |
| Slider PlasDIC for A-Plan 20x/0.45 | K: 426980-9000-000 |
| Stage carrier D/A; attachable and vertically adjustable | K: 430710-9001-000 |
| Reflector slider 2x, changeable, for P&C modules | K: 424940-9050-000 |
| Slider PlasDIC for A-Plan 40x/0.65 | K: 426980-9030-000 |
| Specimen holder basic for one-hand operation, spring lever left | K: 432333-9000-000 |
| Condenser 0.9/1.25 H | K: 424225-9001-000 |
| Slit-diaphragm 2mm for PlasDIC | K: 426715-9000-000 |
| Binocular Ergophototube 20°/23 (100:0/0:100), reversed image | K: 425512-0000-000 |
| Slit-diaphragm 4.5mm for PlasDIC | K: 426715-9010-000 |
| Modulator disk H, D 0.65, Ph 1,2,3 PlasDIC for condenser 0.9/1.25 | K: 424225-9010-000 |
| Objective A-Plan 10x/0,25 M27 | K: 421040-9900-000 |
| Objective A-Plan 20x/0.45 M27 | K: 421050-9900-000 |
| Objective A-Plan 40x/0.65 M27 | K: 421060-9900-000 |
| Analyzer module Pol ACR P&C for transmitted light | K: 424937-9901-000 |
| Mechanical stage 75x50 R with hardcoat anodized surface | K: 432035-9000-000 |
| Dust protection Set M | K: 434303-0000-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
