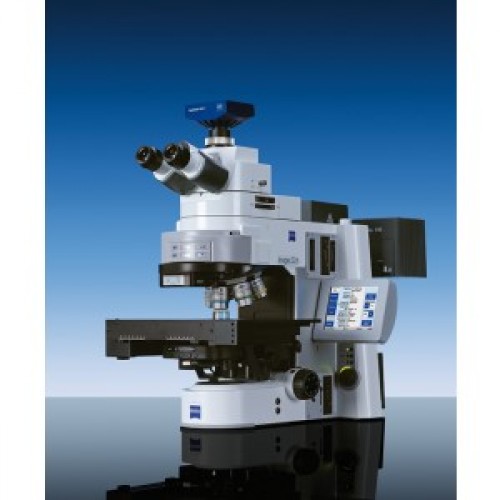

Microscope Axio Imager.Z2m with Auto Focus equipment for reflected-light bright field-dark field and C DIC, with phototube 15°/25. With motorized convenience and PC interface.
| Parts List and Accessories | |
| 6-position reflector turret mot. for P&C modules | K: 424907-0000-000 |
| 7-position objective nosepiece, HD M27 mot. | K: 424502-0000-000 |
| Auto Focus equipment for Sideport 60N | K: 425131-9000-000 |
| Microscope Axio Imager.Z2m with Auto Focus equipment | K: 490017-0011-000 |
| Reflector module C-DIC/TIC ACR P&C for reflected light | K: 424929-9903-000 |
| Axio Imager.Z2m microscope stand with Z-drive mot. and TFT monitor | K: 430010-9902-000 |
| C-DIC prism for modulator turret | K: 426921-0000-000 |
| Camera path deflection on the left side, mot., interface 60N | K: 425104-0000-000 |
| Reflector module dark field ACR P&C for reflected light | K: 424922-9901-000 |
| 4-position modulator turret for circular DIC/TIC | K: 424703-0000-000 |
| Installation kit for Auto Focus equipment on Sideport | K: 425131-9030-000 |
| Reflected-light stage carrier, detachable for Axio Imager | K: 430701-9901-000 |
| Double filter wheel, discrete, mot., 2x4 positions | K: 428301-9901-000 |
| Mechanical stage 75x50 R for reflected light | K: 453527-9903-000 |
| Objective EC Epiplan-Neofluar 10x/0.25 BD DIC M27 | K: 422342-9960-000 |
| Objective EC Epiplan-Neofluar 20x/0.50 BD DIC M27 | K: 000000-1156-524 |
| Objective EC Epiplan-Neofluar 50x/0.8 BD DIC M27 | K: 422372-9961-000 |
| Objective EC Epiplan-Neofluar 5x/0.13 BD DIC M27 | K: 000000-1156-514 |
| Stop slider mot. with centerable aperture stop | K: 423614-9901-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Stop slider mot. with centerable luminous-field diaphragm | K: 423612-9901-000 |
| Illuminator microLED 2 | K: 423053-9072-000 |
| Binocular phototube 15°/25 (100:0/0:100), upright image | K: 425503-9901-000 |
| Conversion filter 5700-3200 K, d=25 mm | K: 427809-9010-000 |
| Neutral-density filter set D/A, d=25 | K: 487931-9901-000 |
| Eyepiece PL 10x/25 Br. foc. | K: 444034-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
| Dust protection Set L | K: 434304-0000-000 |
Теги: Microscope Axio Imager.Z2m with Auto Focus equipment, 490017-0011-000, Zeiss, Axio Imager.Z2m
