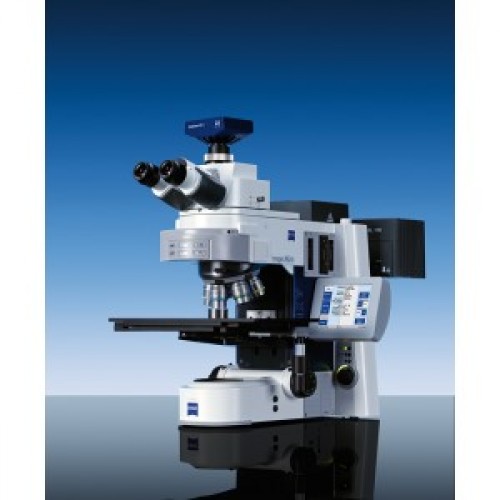

Microscope Axio Imager.M2m for reflected-light bright field-dark field, C DIC and transmitted light, with comfortable Ergophototube 15°/23. With PC interface.
| Parts List and Accessories | |
| 7-position objective nosepiece, HD M27 mot. | K: 424502-0000-000 |
| Mechanical stage 75x50 R 120 mm with hardcoat anodized surface | K: 432012-9902-000 |
| Microscope Axio Imager.M2m | K: 490021-0004-000 |
| Reflector module C-DIC/TIC ACR P&C for reflected light | K: 424929-9903-000 |
| Axio Imager.M2m microscope stand with Z-drive mot. and TFT monitor | K: 430014-9902-000 |
| C-DIC prism for modulator turret | K: 426921-0000-000 |
| Double filter wheel, discrete, man. with neutral-density filter set d=25 | K: 428319-9000-000 |
| Reflector module dark field ACR P&C for reflected light | K: 424922-9901-000 |
| Specimen holder, reflected light, for mechanical stage 75x50 | K: 432302-0000-000 |
| Transmitted-light/reflected-light stage carrier, detachable | K: 430704-9901-000 |
| 4-position modulator turret for circular DIC/TIC | K: 424703-0000-000 |
| Condenser carrier with vertical adjustment on both sides | K: 430705-0000-000 |
| Condenser, LD achromatic 0.8 H DIC | K: 424206-9901-000 |
| Double filter wheel, discrete, mot., 2x4 positions | K: 428301-9901-000 |
| Objective EC Epiplan-Neofluar 10x/0.25 BD DIC M27 | K: 422342-9960-000 |
| Transmitted-light illumination for Axio Imager 2 | K: 423900-9901-000 |
| Comfortable binocular Ergophototube 15°/23 (50:50), upright image | K: 425515-0000-000 |
| Objective EC Epiplan-Neofluar 20x/0.50 BD DIC M27 | K: 000000-1156-524 |
| Specimen holder for slide 76x26 mm for one-hand operation | K: 432301-0000-000 |
| Objective EC Epiplan-Neofluar 50x/0.8 BD DIC M27 | K: 422372-9961-000 |
| Objective EC Epiplan-Neofluar 5x/0.13 BD DIC M27 | K: 000000-1156-514 |
| Stop slider mot. with centerable aperture stop | K: 423614-9901-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Stop slider mot. with centerable luminous-field diaphragm | K: 423612-9901-000 |
| Illuminator microLED 2 | K: 423053-9072-000 |
| Conversion filter 5700-3200 K, d=25 mm | K: 427809-9010-000 |
| Neutral-density filter set D/A, d=25 | K: 487931-9901-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
| Dust protection Set L | K: 434304-0000-000 |
Теги: Microscope Axio Imager.M2m, Item Number:490021-0004-000, Forensic examinations
