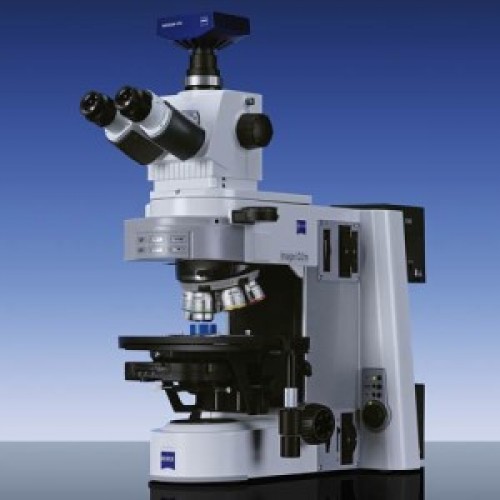

Microscope Axio Imager.D2m for reflected-light bright field and dark field, with phototube 15°/25. With PC interface.
| Parts List and Accessories | |
| Microscope Axio Imager.D2m | K: 490019-0001-000 |
| 6-position reflector turret man. cod. for P&C modules | K: 424906-0000-000 |
| Axio Imager.D2m microscope stand with Light Control man. | K: 430011-9902-000 |
| Reflector module dark field ACR P&C for reflected light | K: 424922-9901-000 |
| 7-position objective nosepiece, HD M27 cod. | K: 424501-0000-000 |
| Compensator mount 6x20 with DF stop | K: 424706-0000-000 |
| Reflected-light stage carrier, detachable for Axio Imager | K: 430701-9901-000 |
| Mechanical stage 75x50 R for reflected light | K: 453527-9903-000 |
| Objective EC Epiplan-Neofluar 10x/0.25 BD DIC M27 | K: 422342-9960-000 |
| Double filter wheel, discrete, man., 2x4 positions | K: 428300-9901-000 |
| Objective EC Epiplan-Neofluar 20x/0.50 BD DIC M27 | K: 000000-1156-524 |
| Objective EC Epiplan-Neofluar 50x/0.8 BD DIC M27 | K: 422372-9961-000 |
| Objective EC Epiplan-Neofluar 5x/0.13 BD DIC M27 | K: 000000-1156-514 |
| Stop slider with centerable aperture stop | K: 423613-0000-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Illuminator microLED 2 | K: 423053-9072-000 |
| Binocular phototube 15°/25 (100:0/0:100), upright image | K: 425503-9901-000 |
| Conversion filter 5700-3200 K, d=25 mm | K: 427809-9010-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Neutral-density filter set D/A, d=25 | K: 487931-9901-000 |
| Eyepiece PL 10x/25 Br. foc. | K: 444034-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
Теги: Microscope Axio Imager.D2m, 490019-0001-000, Zeiss, Axio Imager.D2m
