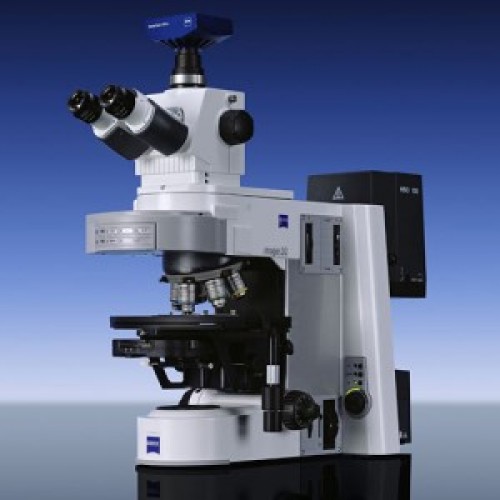

Microscope Axio Imager.D2 for epi-fluorescence in combination with transmitted-light bright field and DIC, with phototube 30°/25. With PC interface.
| Parts List and Accessories | |
| 10-position reflector turret mot. ACR, for P&C modules | K: 424913-0000-000 |
| 6-position objective nosepiece, HD DIC M27 cod. | K: 424504-0000-000 |
| Filter set transm. light with neutral-density and color filters, d=25 | K: 487935-9010-000 |
| Microscope Axio Imager.D2 | K: 490018-0004-000 |
| Axio Imager.D2 microscope stand with Light Control man. | K: 430001-9902-000 |
| Objective EC Plan-Neofluar 5x/0.16 M27 | K: 420330-9901-000 |
| Shutter remote control for HXP 120 V | K: 000000-0544-644 |
| Binocular phototube 30°/25 (100:0/30:70/0:100), reversed image | K: 425502-0000-000 |
| DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II | K: 426940-0000-000 |
| Reflected-light illuminator for FL and HD for Axio Imager | K: 423600-0000-000 |
| Antiglare screen | K: 452163-0000-000 |
| DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III | K: 426945-0000-000 |
| Analyzer module DIC ACR P&C shift free for transmitted light | K: 424932-9901-000 |
| Double filter wheel, discrete, man., 2x4 positions | K: 428300-9901-000 |
| FL attenuator, discrete | K: 423616-0000-000 |
| Shutter for transmitted-light illumination | K: 423621-9901-000 |
| Specimen holder for slide 76x26 mm for one-hand operation | K: 432301-0000-000 |
| Stop slider man. with centerable luminous-field diaphragm | K: 423611-0000-000 |
| Achromatic-aplanatic universal condenser 0.9 H D Ph DIC | K: 424200-9901-000 |
| Condenser module DIC I/0.9 with polarizer | K: 426701-0000-000 |
| Objective EC Plan-Neofluar 100x/1.30 Oil M27 | K: 420490-9900-000 |
| Condenser module DIC II/0.9 with polarizer | K: 426702-0000-000 |
| Objective EC Plan-Neofluar 10x/0.3 M27 | K: 420340-9901-000 |
| Condenser module DIC III/0.9 with polarizer | K: 426703-0000-000 |
| Objective EC Plan-Neofluar 20x/0.50 M27 | K: 420350-9900-000 |
| Compensator mount 6x20 | K: 424705-0000-000 |
| Objective EC Plan-Neofluar 40x/0.75 M27 | K: 420360-9900-000 |
| Mechanical stage 75x50 R with hardcoat anodized surface | K: 432002-9902-000 |
| Filter set 20 Rhodamin shift free (F) | K: 488020-9901-000 |
| Filter set 49 DAPI shift free (E) | K: 488049-9901-000 |
| Eyepiece PL 10x/25 Br. foc. | K: 444034-9000-000 |
| Reflector module FL EC P&C | K: 424931-0000-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Illumination adapter for light sources with light guide (D) | K: 423302-0000-000 |
| Illuminator HXP 120 V (D) | K: 423013-9010-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Filter set 38 Endow GFP shift free (E) | K: 000000-1031-346 |
| Eyepiece eyecup | K: 444801-0000-000 |
| Dust protection Set L | K: 434304-0000-000 |
