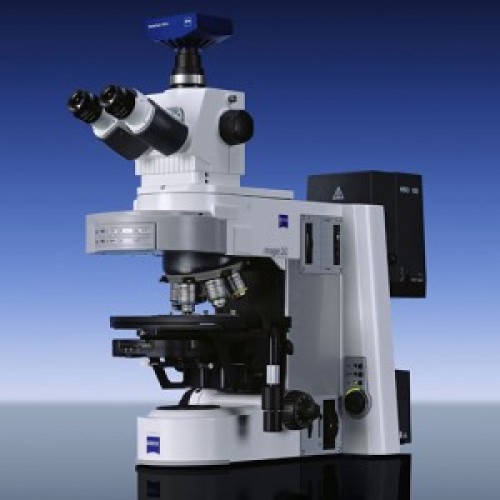

Microscope Axio Imager.D2 for transmitted-light bright field and phase contrast, with phototube 30°/25. With PC interface.
| Parts List and Accessories | |
| Filter set transm. light with neutral-density and color filters, d=25 | K: 487935-9010-000 |
| Microscope Axio Imager.D2 | K: 490018-0002-000 |
| Axio Imager.D2 microscope stand with Light Control man. | K: 430001-9902-000 |
| Objective EC Plan-Neofluar 100x/1.30 Oil Ph3 M27 | K: 420491-9910-000 |
| 7-position objective nosepiece, HD M27 cod. | K: 424501-0000-000 |
| Objective EC Plan-Neofluar 10x/0.3 Ph1 M27 | K: 420341-9911-000 |
| Objective EC Plan-Neofluar 20x/0.50 Ph2 M27 | K: 420351-9910-000 |
| Binocular phototube 30°/25 (30vis:70doc), reversed image | K: 425501-0000-000 |
| Double filter wheel, discrete, man., 2x4 positions | K: 428300-9901-000 |
| Objective EC Plan-Neofluar 40x/0.75 Ph2 M27 | K: 420361-9910-000 |
| Specimen holder for slide 76x26 mm for one-hand operation | K: 432301-0000-000 |
| Objective EC Plan-Neofluar 5x/0.16 Ph1 M27 | K: 420331-9911-000 |
| Achromatic-aplanatic universal condenser 0.9 H D Ph DIC | K: 424200-9901-000 |
| Mechanical stage 75x50 R with hardcoat anodized surface | K: 432002-9902-000 |
| Eyepiece PL 10x/25 Br. foc. | K: 444034-9000-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
| Dust protection Set L | K: 434304-0000-000 |
