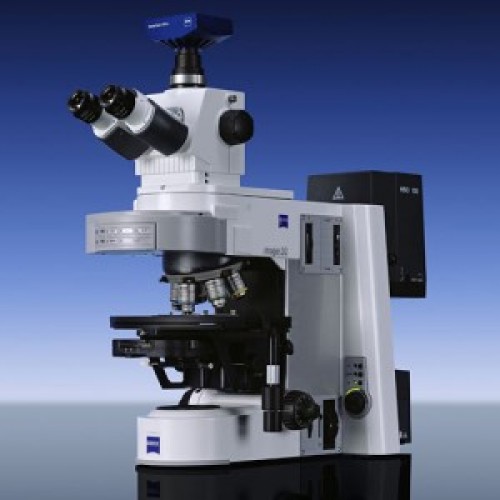

Microscope Axio Imager.D2 for transmitted-light bright field, with phototube 30°/25. With PC interface.
| Parts List and Accessories | |
| Microscope Axio Imager.D2 | K: 490018-0001-000 |
| Axio Imager.D2 microscope stand with Light Control man. | K: 430001-9902-000 |
| 7-position objective nosepiece, HD M27 cod. | K: 424501-0000-000 |
| Objective EC Plan-Neofluar 1.25x/0.03 M27 | K: 420310-9901-000 |
| Objective Plan-Apochromat 20x/0.8 M27 | K: 420650-9902-000 |
| Binocular phototube 30°/25 (30vis:70doc), reversed image | K: 425501-0000-000 |
| Double filter wheel, discrete, man., 2x4 positions | K: 428300-9901-000 |
| Specimen holder for slide 76x26 mm for one-hand operation | K: 432301-0000-000 |
| Objective EC Plan-Neofluar 10x/0.3 M27 | K: 420340-9901-000 |
| Objective EC Plan-Neofluar 2.5x/0.085 M27 | K: 420320-9902-000 |
| Objective EC Plan-Neofluar 40x/0.75 M27 | K: 420360-9900-000 |
| Achromatic-aplanatic pathology condenser 0.9 H | K: 424219-9901-000 |
| Mechanical stage 75x50 R with hardcoat anodized surface | K: 432002-9902-000 |
| Neutral-density filter set D/A, d=25 | K: 487931-9901-000 |
| Eyepiece PL 10x/25 Br. foc. | K: 444034-9000-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
| Dust protection Set L | K: 434304-0000-000 |
