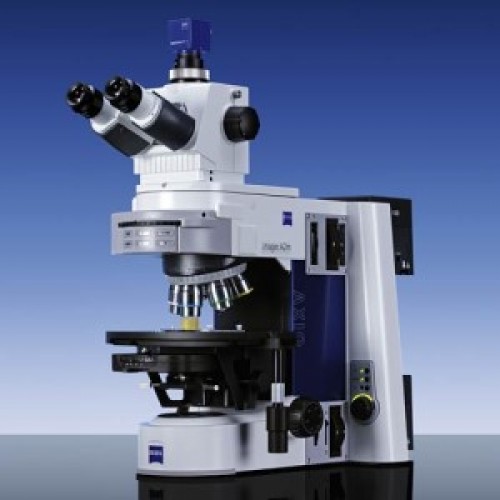

Microscope Axio Imager.A2m for reflected and transmitted light prepared for Linkam Heating/Freezing Stages
| Parts List and Accessories | |
| Microscope Axio Imager.A2m for reflected and transmitted light | K: 490023-0008-000 |
| 6-position reflector turret man. cod. for P&C modules | K: 424906-0000-000 |
| Axio Imager.A2m microscope stand | K: 430015-9901-000 |
| Double filter wheel, discrete, man. with neutral-density filter set d=25 | K: 428319-9000-000 |
| Reflector module dark field ACR P&C for reflected light | K: 424922-9901-000 |
| Transmitted-light/reflected-light stage carrier, detachable | K: 430704-9901-000 |
| 7-position objective nosepiece, HD M27 cod. | K: 424501-0000-000 |
| Compensator mount 6x20 with DF stop | K: 424706-0000-000 |
| Condenser carrier with vertical adjustment on both sides | K: 430705-0000-000 |
| Transmitted-light illumination for Axio Imager 2 | K: 423900-9901-000 |
| Double filter wheel, discrete, man., 2x4 positions | K: 428300-9901-000 |
| Shutter for transmitted-light illumination | K: 423621-9901-000 |
| Linkam Stage Adapter Plate (D) | K: 000000-1510-344 |
| Objective EC Epiplan 10x/0.25 BD M27 | K: 422040-9961-000 |
| Objective LD Epiplan 20x/0.4 M27 | K: 422850-9900-000 |
| Stop slider with centerable aperture stop | K: 423613-0000-000 |
| Achromatic-aplanatic condenser 0.9 H/0.4 LD | K: 424221-9000-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Objective EC Epiplan 5x/0.13 BD M27 | K: 422030-9961-000 |
| Binocular phototube 15°/25 (100:0/0:100), upright image | K: 425503-9901-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Neutral-density filter set D/A, d=25 | K: 487931-9901-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
