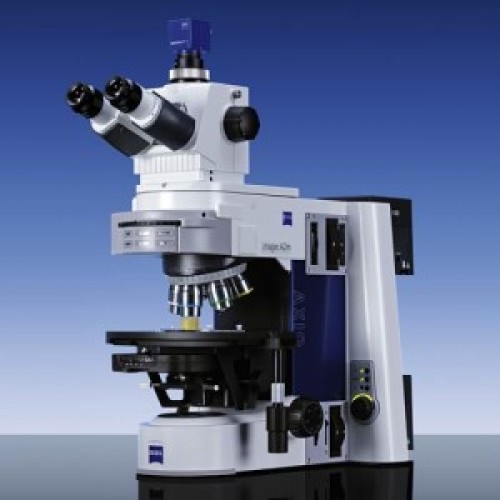

Microscope Axio Imager.A2m for reflected and transmitted light Pol. With PC interface.
| Parts List and Accessories | |
| 6-position objective nosepiece, Pol HD M27 cod. | K: 424503-0000-000 |
| Microscope Axio Imager.A2m | K: 490023-0007-000 |
| Reflector module polarizer ACR P&C for reflected light | K: 424923-9901-000 |
| 6-position reflector turret man. cod. for P&C modules | K: 424906-0000-000 |
| Axio Imager.A2m microscope stand | K: 430015-9901-000 |
| Double filter wheel, discrete, man. with neutral-density filter set d=25 | K: 428319-9000-000 |
| Transmitted-light/reflected-light stage carrier, detachable | K: 430704-9901-000 |
| Compensator mount 6x20 with DF stop | K: 424706-0000-000 |
| Condenser carrier with vertical adjustment on both sides | K: 430705-0000-000 |
| Polarizer D, 90° rotatable, removable | K: 427706-0000-000 |
| Compensator Lambda, 6x20 | K: 473704-0000-000 |
| Specimen holder A Pol | K: 453564-0000-000 |
| Transmitted-light illumination for Axio Imager 2 | K: 423900-9901-000 |
| Analyzer slider D/A, fixed | K: 428101-0000-000 |
| Double filter wheel, discrete, man., 2x4 positions | K: 428300-9901-000 |
| Rotary stage Pol 360°, 45° click stops switchable, for Axio Imager | K: 432007-0000-000 |
| Objective EC Epiplan-Neofluar 10x/0.25 Pol M27 | K: 422343-9900-000 |
| Specimen holder D Pol | K: 453563-0000-000 |
| Stop slider with centerable aperture stop | K: 423613-0000-000 |
| Object guide Pol 45x25 mm, with click stop | K: 453560-0000-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Binocular phototube Pol 15°/23 (100:0/0:100), upright image | K: 425517-0000-000 |
| Objective EC Epiplan-Neofluar 20x/0.50 Pol M27 | K: 000000-1156-522 |
| Conversion filter 3200-5500K; d=25x2 | K: 447825-0000-000 |
| Objective EC Epiplan-Neofluar 50x/0.8 Pol M27 | K: 422373-9800-000 |
| Eyepiece E-PL 10x/23 Br. foc. | K: 444235-9901-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Neutral-density filter set D/A, d=25 | K: 487931-9901-000 |
| Objective EC Plan-Neofluar 2.5x/0.085 Pol M27 | K: 420323-9902-000 |
| Objective EC Plan-Neofluar 20x/0.50 Pol M27 | K: 420353-9900-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Objective EC Plan-Neofluar 40x/0.9 Pol M27 | K: 420363-9901-000 |
| Achromatic-aplanatic universal condenser 0.9 H Pol | K: 424212-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
