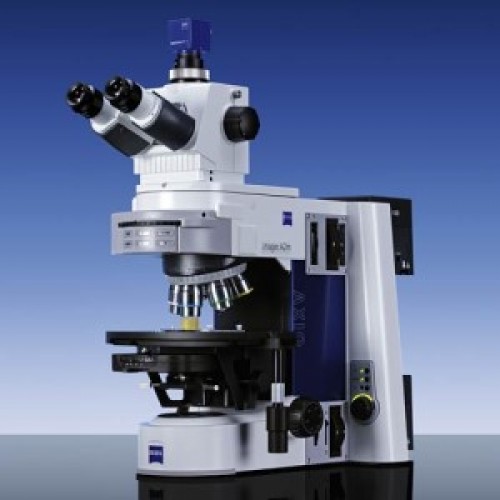

Microscope Axio Imager.A2m for reflected-light Pol. With PC interface.
| Parts List and Accessories | |
| 6-position objective nosepiece, Pol HD M27 cod. | K: 424503-0000-000 |
| Microscope Axio Imager.A2m | K: 490023-0006-000 |
| Reflector module polarizer ACR P&C for reflected light | K: 424923-9901-000 |
| 6-position reflector turret man. cod. for P&C modules | K: 424906-0000-000 |
| Analyzer slider D/A with lambda-plate, each rotatable +/- 10° | K: 453663-9901-000 |
| Axio Imager.A2m microscope stand | K: 430015-9901-000 |
| Transmitted-light/reflected-light stage carrier, detachable | K: 430704-9901-000 |
| Pol adjusting aid | K: 453679-0000-000 |
| Specimen holder A Pol | K: 453564-0000-000 |
| Crossline graticule, d=26 mm | K: 474064-0000-000 |
| Double filter wheel, discrete, man., 2x4 positions | K: 428300-9901-000 |
| Objective EC Epiplan-Neofluar 100x/0.90 Pol M27 | K: 422393-9900-000 |
| Rotary stage Pol 360°, 45° click stops switchable, for Axio Imager | K: 432007-0000-000 |
| Objective EC Epiplan-Neofluar 10x/0.25 Pol M27 | K: 422343-9900-000 |
| Stop slider with centerable aperture stop | K: 423613-0000-000 |
| Object guide Pol 45x25 mm, with click stop | K: 453560-0000-000 |
| Objective EC Epiplan-Neofluar 2.5x/0.06 Pol M27 | K: 422323-9900-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Objective EC Epiplan-Neofluar 20x/0.50 Pol M27 | K: 000000-1156-522 |
| Objective EC Epiplan-Neofluar 50x/0.8 Pol M27 | K: 422373-9800-000 |
| Eyepiece E-PL 10x/23 Br. foc. | K: 444235-9901-000 |
| Objective EC Epiplan-Neofluar 5x/0.13 Pol M27 | K: 000000-1156-512 |
| Binocular phototube 15°/25 (100:0/0:100), upright image | K: 425503-9901-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Neutral-density filter set D/A, d=25 | K: 487931-9901-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
