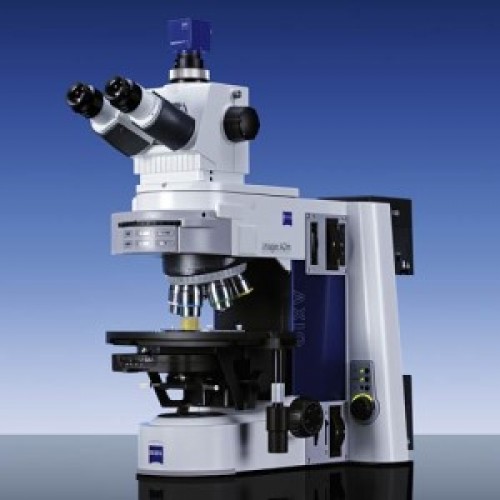

Microscope Axio Imager.A2m for reflected-light bright field and dark field, with phototube 15°/25. With PC interface.
| Parts List and Accessories | |
| Microscope Axio Imager.A2m | K: 490023-0002-000 |
| 6-position reflector turret man. cod. for P&C modules | K: 424906-0000-000 |
| Axio Imager.A2m microscope stand | K: 430015-9901-000 |
| Reflector module dark field ACR P&C for reflected light | K: 424922-9901-000 |
| 7-position objective nosepiece, HD M27 cod. | K: 424501-0000-000 |
| Compensator mount 6x20 with DF stop | K: 424706-0000-000 |
| Reflected-light stage carrier, detachable for Axio Imager | K: 430701-9901-000 |
| Mechanical stage 75x50 R for reflected light | K: 453527-9903-000 |
| Double filter wheel, discrete, man., 2x4 positions | K: 428300-9901-000 |
| Objective EC Epiplan 10x/0.25 BD M27 | K: 422040-9961-000 |
| Stop slider with centerable aperture stop | K: 423613-0000-000 |
| Objective EC Epiplan 20x/0.4 BD M27 | K: 422050-9961-000 |
| Reflector module bright field ACR P&C for reflected light | K: 424928-9901-000 |
| Illuminator microLED 2 | K: 423053-9072-000 |
| Objective EC Epiplan 50x/0.75 BD M27 | K: 422070-9961-000 |
| Objective EC Epiplan 5x/0.13 BD M27 | K: 422030-9961-000 |
| Binocular phototube 15°/25 (100:0/0:100), upright image | K: 425503-9901-000 |
| Conversion filter 5700-3200 K, d=25 mm | K: 427809-9010-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Neutral-density filter set D/A, d=25 | K: 487931-9901-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
