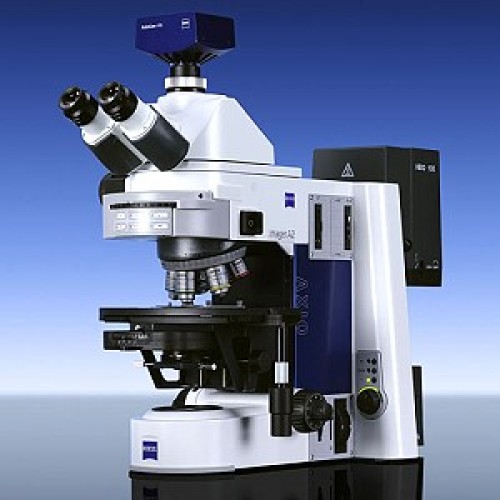

Microscope Axio Imager.A2 for transmitted-light Pol for orthoscopy and conoscopy. With PC interface.
| Parts List and Accessories | |
| 6-position objective nosepiece, Pol HD M27 cod. | K: 424503-0000-000 |
| Microscope Axio Imager.A2 | K: 490022-0009-000 |
| Axio Imager.A2 microscope stand | K: 430005-9901-000 |
| Double filter wheel, discrete, man. with neutral-density filter set d=25 | K: 428319-9000-000 |
| Polarizer D, 90° rotatable, removable | K: 427706-0000-000 |
| Compensator Lambda, 6x20 | K: 473704-0000-000 |
| Analyzer slider D/A, fixed | K: 428101-0000-000 |
| Rotary stage Pol 360°, 45° click stops switchable, for Axio Imager | K: 432007-0000-000 |
| Specimen holder D Pol | K: 453563-0000-000 |
| Object guide Pol 45x25 mm, with click stop | K: 453560-0000-000 |
| Binocular phototube Pol 15°/23 (100:0/0:100), upright image | K: 425517-0000-000 |
| Conversion filter 3200-5500K; d=25x2 | K: 447825-0000-000 |
| Compensator mount 6x20 | K: 424705-0000-000 |
| Eyepiece E-PL 10x/23 Br. foc. | K: 444235-9901-000 |
| Objective EC Plan-Neofluar 100x/1.30 Oil Pol M27 | K: 420493-9900-000 |
| Dust protection Set M | K: 434303-0000-000 |
| Objective EC Plan-Neofluar 10x/0.3 Pol M27 | K: 420343-9901-000 |
| Objective EC Plan-Neofluar 2.5x/0.085 Pol M27 | K: 420323-9902-000 |
| Objective EC Plan-Neofluar 20x/0.50 Pol M27 | K: 420353-9900-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Objective EC Plan-Neofluar 40x/0.9 Pol M27 | K: 420363-9901-000 |
| Objective EC Plan-Neofluar 5x/0.16 Pol M27 | K: 420333-9901-000 |
| Achromatic-aplanatic universal condenser 0.9 H Pol | K: 424212-9901-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
Теги: Microscope Axio Imager.A2, 490022-0009-000, Zeiss, Axio Imager.A2
