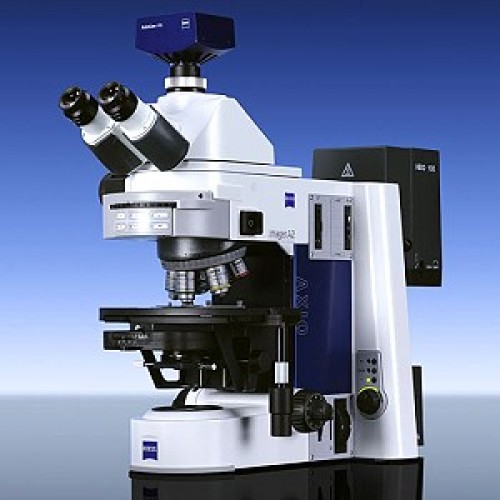

Microscope Axio Imager.A2 for epi-fluorescence in combination with transmitted-light bright field and DIC, with Ergophototube 20°/23. With PC interface.
Parts List and Accessories | |
6-position objective nosepiece, HD DIC M27 cod. | K: 424504-0000-000 |
Microscope Axio Imager.A2 | K: 490022-0008-000 |
6-position reflector turret man. cod. for P&C modules | K: 424906-0000-000 |
Axio Imager.A2 microscope stand | K: 430005-9901-000 |
DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II | K: 426940-0000-000 |
Reflected-light illuminator for FL and HD for Axio Imager | K: 423600-0000-000 |
Antiglare screen | K: 452163-0000-000 |
DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III | K: 426945-0000-000 |
Analyzer module DIC ACR P&C shift free for transmitted light | K: 424932-9901-000 |
FL attenuator, discrete | K: 423616-0000-000 |
Specimen holder for slide 76x26 mm for one-hand operation | K: 432301-0000-000 |
Binocular Ergophototube 20°/23 (100:0/0:100), reversed image | K: 425512-0000-000 |
Mechanical stage 75x50/240° R with hardcoat anodized surface | K: 432001-9902-000 |
Stop slider man. with centerable luminous-field diaphragm | K: 423611-0000-000 |
Achromatic-aplanatic universal condenser 0.9 H D Ph DIC | K: 424200-9901-000 |
Condenser module DIC I/0.9 with polarizer | K: 426701-0000-000 |
HBO 100 illuminator with lamp mount and collector | K: 423010-0000-000 |
Objective EC Plan-Neofluar 100x/1.30 Oil M27 | K: 420490-9900-000 |
Adjusting aid for HBO lamps for Axio Imager | K: 423631-9901-000 |
Condenser module DIC II/0.9 with polarizer | K: 426702-0000-000 |
Objective EC Plan-Neofluar 10x/0.3 M27 | K: 420340-9901-000 |
Burner Mercury - HBO 103 W/2 (F) | K: 380301-9350-000 |
Condenser module DIC III/0.9 with polarizer | K: 426703-0000-000 |
Objective EC Plan-Neofluar 20x/0.50 M27 | K: 420350-9900-000 |
Power supply unit for HBO 100, 90...250V, 50...60Hz, 265 VA | K: 432604-9902-000 |
Compensator mount 6x20 | K: 424705-0000-000 |
Objective EC Plan-Neofluar 40x/0.75 M27 | K: 420360-9900-000 |
Filter set 20 Rhodamin shift free (F) | K: 488020-9901-000 |
Filter set 49 DAPI shift free (E) | K: 488049-9901-000 |
Reflector module FL EC P&C | K: 424931-0000-000 |
HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
Filter set 38 Endow GFP shift free (E) | K: 000000-1031-346 |
Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
Eyepiece eyecup | K: 444801-0000-000 |
Dust protection Set L | K: 434304-0000-000 |
