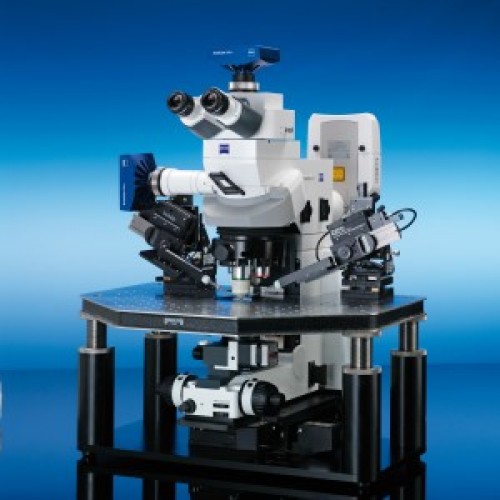

Fixed Stage microscope Axio Examiner.Z1 for electrophysiology for bright field, inclined illumination, DIC-IR/VIS and epi-fluorescence, with motorized objective and condenser focusing as well as motorized reflector turret
| Parts List and Accessories | |
| Condenser carrier Axio Examiner, mot. focus | K: 430721-9011-000 |
| Fixed Stage microscope Axio Examiner.Z1 | K: 491406-0001-000 |
| Lower microscope part Axio Examiner mot. | K: 430031-9012-000 |
| Slider 14x40 FL attenuator, discrete | K: 423730-9130-000 |
| Adapter for expansion of specimen area by 30 mm | K: 430030-9100-000 |
| Upper microscope part D/A Axio Examiner.Z1 with sideport 60N | K: 423731-9031-000 |
| Connecting PCB for mot. components in upper part Axio Examiner D1/Z1 | K: 423731-9160-000 |
| Shutter mot. for reflected-light illumination Axio Examiner man./mot. | K: 423731-9050-000 |
| 4-position CAN hub for microscope stands with CAN interface | K: 432927-9050-000 |
| Aqua Stop for condensers LD 0.8, 0.9 and 1.2 | K: 431717-9000-000 |
| 4-position objective turret M27, DIC cod.; Axio Examiner | K: 424516-9030-000 |
| DIC slider Senarmont 75 W PA 20x/1.0 III | K: 426967-9000-000 |
| DIC slider W PA 40x/1.0 III | K: 426967-9010-000 |
| Stage carrier Axio Examiner, attachable, with support | K: 430711-9000-000 |
| Analyzer module D P&C for IR-DIC 770 nm | K: 424941-9020-000 |
| Analyzer module Pol ACR P&C for transmitted light | K: 424937-9901-000 |
| Docking station with TFT display for Axio Examiner/Axio Imager Vario | K: 432926-9001-000 |
| Senarmont polarizer DIC/VIS-IR 770 nm | K: 427710-9030-000 |
| Slider for sideport Axio Examiner with 100% mirror 46x34mm | K: 423731-9131-000 |
| Mechanical stage 75x50 mot standard; CAN (D) | K: 432026-9000-000 |
| Shutter mot. for transmitted-light illumination Axio Examiner | K: 423731-9060-000 |
| Filter IR BP 750-790 nm d=32 x 2 mm for IR-DIC | K: 447958-9000-000 |
| Reflected-light illumination with reflector turret 5x mot. P&C | K: 423731-9121-000 |
| Condenser module DIC III/1.2 Senarmont | K: 426724-9020-000 |
| Stop slider A 14x40 mm with luminous-field diaphragm | K: 423730-9100-000 |
| Reflector module FL EC P&C | K: 424931-0000-000 |
| HAL 100 illuminator with quartz collector | K: 423000-9901-000 |
| Illumination adapter for light sources with light guide (D) | K: 423302-0000-000 |
| Illuminator HXP 120 V (D) | K: 423013-9010-000 |
| Bulb 12V 100W Halogen Rectangular Filament | K: 380059-1660-000 |
| Universal mounting frame for Petri dishes and slides | K: 432311-9901-000 |
| Ergophototube 6-25°/23 (100:0/0:100), upright image, Axio Examiner | K: 425521-9051-000 |
| Filter set 38 Endow GFP shift free (E) | K: 000000-1031-346 |
| Filter set 43 Cy 3, d=25 shift free (E) | K: 000000-1114-101 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
| Objective W Plan-Apochromat 10x/0.5 M27 75mm | K: 421440-9900-000 |
| Objective W Plan-Apochromat 20x/1.0 DIC M27 75mm | K: 421452-9800-000 |
| Objective W Plan-Apochromat 40x/1.0 DIC M27 | K: 421462-9900-000 |
| Adapter 30mm with optics and DIC slider mount | K: 424516-9041-000 |
| Condenser, achromatic-aplanatic 1.2W H DIC 5x | K: 424226-9020-000 |
| Extension cable 2 m for illuminators HAL 100/LED | K: 457411-9051-000 |
| Dust protection Set L | K: 434304-0000-000 |
