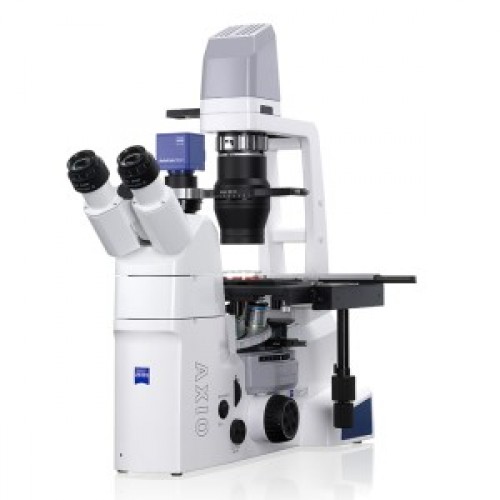

Inverted microscope Axio Vert.A1 for transmitted-light brightfield HAL, phase contrast and DIC with phototube and universal mounting frame K
| Parts List and Accessories | |
| Analyzer fixed for contrast slider 10x29 mm | K: 428108-9000-000 |
| Inverted microscope Axio Vert.A1 | K: 491237-0021-000 |
| Mechanical stage 130x85 R/L with short coaxial drive | K: 432047-9902-000 |
| Microscope stand Axio Vert.A1 | K: 431030-9000-000 |
| Neutral-density filter 0.05 for condenser | K: 424228-9060-000 |
| Illuminator HAL for Axio Vert transmitted light | K: 423004-9010-000 |
| LD condenser 0.4 for H Ph PlasDIC DIC iHMC | K: 424228-9010-000 |
| Binocular phototube, left port 45°/23 (50:50) | K: 425523-9020-000 |
| Bulb 12V 37W Halogen for Axio Vert | K: 000000-1879-242 |
| Phase stop Ph 1 0.35/0.4 for condenser | K: 426717-9150-000 |
| 3 position contrast slider 10x29 mm for PlasDIC module and analyzer | K: 426980-9050-000 |
| Condenser module DIC II/0.4 with polarizer | K: 426717-9240-000 |
| Green filter, d=32x2 mm | K: 000000-1374-896 |
| DIC slider LD PN 20x/0.40 II | K: 426954-0000-000 |
| Dust protection set for Axio Vert | K: 434308-9000-000 |
| Universal mounting frame K | K: 451352-0000-000 |
| Objective LD Plan-Neofluar 40x/0.6 Corr M27 | K: 421360-9970-000 |
| Objective LD A-Plan 10x/0.25 Ph1 M27 | K: 421241-9910-000 |
| Objective LD A-Plan 20x/0.35 Ph1 M27 | K: 421251-9911-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
Теги: Inverted microscope Axio Vert.A1, 491237-0021-000, Zeiss, Axio Vert.A1
