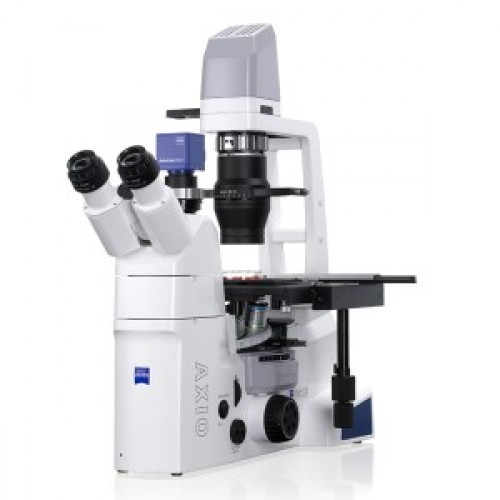

Inverted microscope Axio Vert.A1 for transmitted-light brightfield HAL, iHMC, PlasDIC and DIC with phototube, universal mounting frame K and Thermo Plate
| Parts List and Accessories | |
| Analyzer fixed for contrast slider 10x29 mm | K: 428108-9000-000 |
| Auxiliary microscope, d=30 | K: 444830-9902-000 |
| DIC slider EC PN 100x/1.30 II HC | K: 426951-0000-000 |
| Inverted microscope Axio Vert.A1 | K: 491237-0019-000 |
| Mechanical stage 130x85 R/L with short coaxial drive | K: 432047-9902-000 |
| PlasDIC module LD A-Plan 10x-63x for contrast slider 10x29 mm | K: 426980-9040-000 |
| Polarizer slider D 10x46 mm, 90° rotatable | K: 428109-9000-000 |
| Slit diaphragm 3.5 mm PlasDIC for condenser (10x-40x) | K: 426717-9110-000 |
| Microscope stand Axio Vert.A1 | K: 431030-9000-000 |
| Neutral-density filter 0.05 for condenser | K: 424228-9060-000 |
| Objective LD A-Plan 10x/0.25 M27 | K: 421240-9900-000 |
| Objective LD A-Plan 20x/0.35 iHMC M27 | K: 421251-9931-000 |
| Illuminator HAL for Axio Vert transmitted light | K: 423004-9010-000 |
| LD condenser 0.4 for H Ph PlasDIC DIC iHMC | K: 424228-9010-000 |
| Objective LD A-Plan 20x/0.35 M27 | K: 421250-9901-000 |
| Binocular phototube, left port 45°/23 (50:50) | K: 425523-9020-000 |
| Bulb 12V 37W Halogen for Axio Vert | K: 000000-1879-242 |
| Mounting Frame K Thermo Plate with Controller (D) | K: 411860-9092-000 |
| 3 position contrast slider 10x29 mm for PlasDIC module and analyzer | K: 426980-9050-000 |
| Condenser module DIC II/0.4 with polarizer | K: 426717-9240-000 |
| iHMC module 2 0.35/0.4 for condenser (20x iHMC) | K: 426717-9210-000 |
| Green filter, d=32x2 mm | K: 000000-1374-896 |
| Objective EC Plan-Neofluar 100x/1.30 Oil M27 | K: 420490-9900-000 |
| Dust protection set for Axio Vert | K: 434308-9000-000 |
| Universal mounting frame K | K: 451352-0000-000 |
| Objective LD A-Plan 5x/0.15 M27 | K: 421230-9900-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
