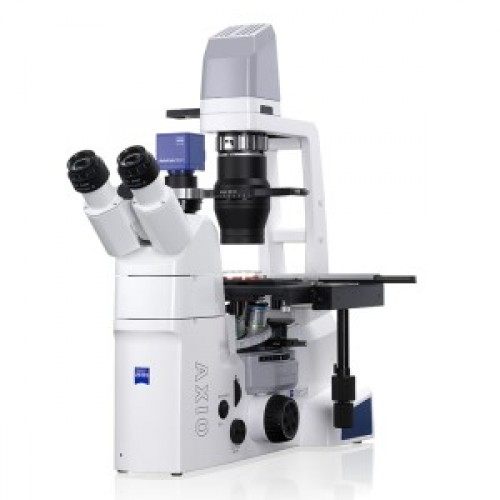

Inverted microscope Axio Vert.A1 for transmitted-light brightfield HAL and phase contrast Ph1
| Parts List and Accessories | |
| Inverted microscope Axio Vert.A1 | K: 491237-0002-000 |
| Mounting frame Flex M | K: 432333-9030-000 |
| Microscope stand Axio Vert.A1 | K: 431030-9000-000 |
| Mounting frame insert Flex M, petridishes | K: 432333-9050-000 |
| Illuminator HAL for Axio Vert transmitted light | K: 423004-9010-000 |
| Object guide M 130x85 mm for Axio Vert | K: 432333-9040-000 |
| Bulb 12V 37W Halogen for Axio Vert | K: 000000-1879-242 |
| LD condenser 0.4 for slider | K: 424228-9020-000 |
| Slider 10x46 mm with fixed phase stop Ph 1/0.4 | K: 426717-9020-000 |
| Specimen stage 232x230 mm with hardcoat anodized surface | K: 432037-9000-000 |
| Green filter, d=32x2 mm | K: 000000-1374-896 |
| Neutral-density filter 0.06, d=32x2 | K: 467848-0000-000 |
| Dust protection set for Axio Vert | K: 434308-9000-000 |
| Binocular tube 45°/23 | K: 425523-9000-000 |
| Objective LD A-Plan 10x/0.25 Ph1 M27 | K: 421241-9910-000 |
| Objective LD A-Plan 20x/0.35 Ph1 M27 | K: 421251-9911-000 |
| Objective LD A-Plan 40x/0.55 Ph1 M27 | K: 421261-9917-000 |
| Objective LD A-Plan 5x/0.15 Ph1 M27 | K: 421231-9910-000 |
| Eyepiece PL 10x/23 Br. foc. | K: 444036-9000-000 |
| Eyepiece eyecup | K: 444801-0000-000 |
Теги: Inverted microscope Axio Vert.A1, 491237-0002-000, Zeiss, Axio Vert.A1
