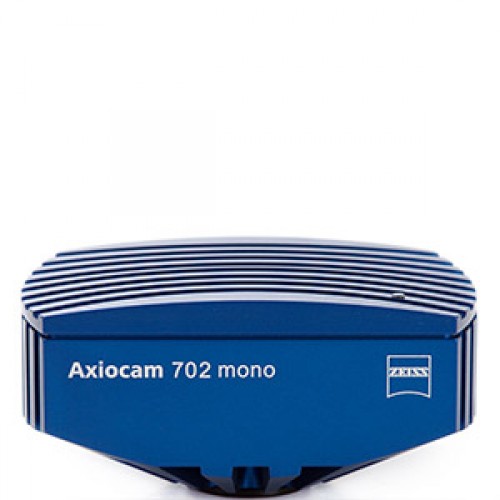

Microscopy Camera Axiocam 702 mono (D)

Microscopy Camera Axiocam 702 mono (D) High performance microscopy camera incl. driver software 64bit, USB 3.0 PCIe x1 interface, dual USB 3.0/USB 2.0 cable 3 m and BK7 protection glass (coated) Number of Pixels: 1920 (H) x 1216 (V) = 2.3 Mega Pixels Pixel size: 5.86 µm x 5.86 µm Chip size: 11.3 mm x 7.1 mm, equivalent to 1/1.2" (13.3 mm diagonal) Spectral range: With protection glass app. 350 nm to 1000 nm Quantum Efficiency 72% at 520 nm (including sensor cover slip) Max. Full Well Capacity: Approx. 32.000 e Selectable Resolution: H x V Binning Faktor (digital) 1920 x 1216 1x1 basic pixel count 960 x 608 2x2 640 x 404 3x3 480 x 304 4x4 384 x 240 5x5 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms, H x V Frame Rate 1936 x 1460>100 fps Frame rates for time series recording (depending on computer hardware and software configuration) H x V Frame Rate 1920 x 1216 128 1920 x 1080 145 960 x 612 245 480 x 306 458 384 x 244 557 1280 x 112 982 1024 x 112 1003 Timelapse recording with "Burst Mode"-function Readout of Sensor Sub-Regions ("ROI"): Adjustable Digitization: 14 Bit (internal 12 Bit ADC, 14 Bit by data processing) Dynamic Range: Typical>5000: 1 (74> dB) at typ.
