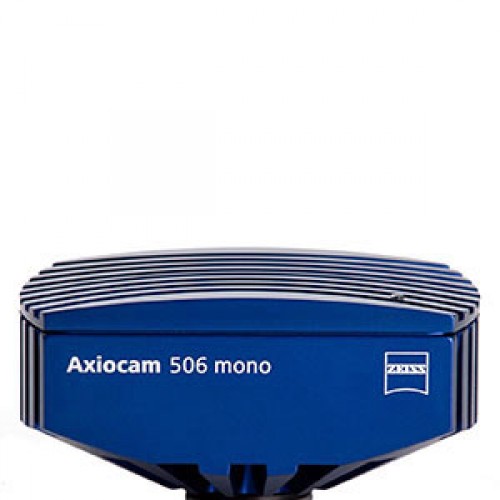

Microscopy Camera Axiocam 506 mono (D)

Microscopy Camera Axiocam 506 mono (D) High Performance microscopy camera incl. driver software 64bit, USB 3.0 PCIe x1 interface, dual USB 3.0/USB 2.0 cable 3 m and BK7 protection glass (coated) Number of Pixels: 2752 (H) x 2208 (V) = 6 Mega Pixels Pixel size: 4.54 µm x 4.54 µm Chip size: 12 mm x 10 mm, equivalent to 1" (16 mm diagonal) Spectral range: with protection glass app. 400 nm to 1000 nm Max. Full Well Capacity: Approx. 15.000 e Selectable Resolution: H x V Binning Factor 2752 x 2208 1x1 Basic Resolution 1376 x 1104 2x2 912 x 736 3x3 688 x 552 4x4 554 x 440 5x5 Live frame rates (depending on hardware and software configuration): Exp. Time 10ms, 39 Mhz pixel clock, Quadport Readout H x V Binning Factor Frame Rate, 2752 x 2208 1 19 1376 x 1104 2 33 912 x 736 3 51 Frame rates for time series recording Continuous Mode with 39 Mhz pixel clock and QuadPort Readout (depending on computer hardware and software configuration) H x V Binning Factor Frame Rate 2752 x 2208 1 20 1376 x 1104 2 34 912 x 736 3 44 688 x 552 4 52 554 x 440 5 58 Timelapse recording with "Burst Mode"-function Readout of Sensor Sub-Regions ("ROI"): Adjustable Digitization: 14 Bit / 39 MHz or 13 MHz pixel clock Dynamic Range: Typical>2500 : 1 (>68 dB) at typ.
