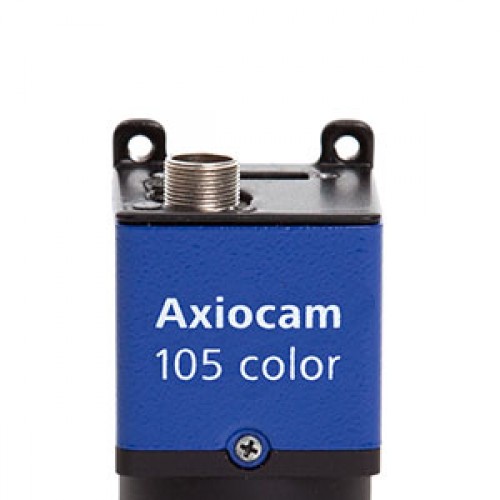

Microscopy Camera Axiocam 105 color

Microscopy Camera Axiocam 105 color with driver software 64bit, USB 3.0 PCIe x1 interface, USB 3.0 connection cable 3.0 m, SATA power cable and Molex power cable Sensor: Aptina CMOS color sensor Basic resolution: 2560 (H) x 1920 (V) = 5.0 Megapixel Pixel size: 2.2 µm x 2.2 µm Chip size: 5.70 mm x 4.28 mm, equivalent to 1/2.5" (diagonal 7.1 mm) Live frame rates (depending on hardware and software configuration): H x V Binning Factor Frame Rate@1ms 2560 x 1920 1 15 1280 x 960 2 37 640 x 480 4 47 Frame rates for time series recording (depending on hardware and software configuration): H x V Binning Factor Frame Rate@1ms 2560 x 1920 1 8 1280 x 960 2 16 640 x 480 4 19 Readout of Sensor Sub- Regions ("ROI"): Adjustable Digitization: 3 x 8 Bit / Pixel Integration Time: 100 µs up to 2 s Interface (camera): USB 3.0 Micro-B Interface (PC / board): USB 3.0 Standard A Spectral range: Approx. 400 nm
- 650 nm, IR filter Read-out mode: Progressive Optical Interface: C-Mount (adapter 0.5x recommended) Size / Weight: approx. 2.9 cm x 2.9 cm x 4.76 cm / 50 g Housing: Aluminum, Magnesium, Stainless Steel Registration: CE, FCC Class B, RoHS Power Supply: via USB 3.0 interface, max. 1.7 W (5 V, 0.34 A) Environmental conditions: 0° ... +50° Celsius, max. 80% relative air humidity, no condensation, free air circulation required Supported operating systems: Windows 10 Enterprise embedded x64 and older Windows x64 systems
