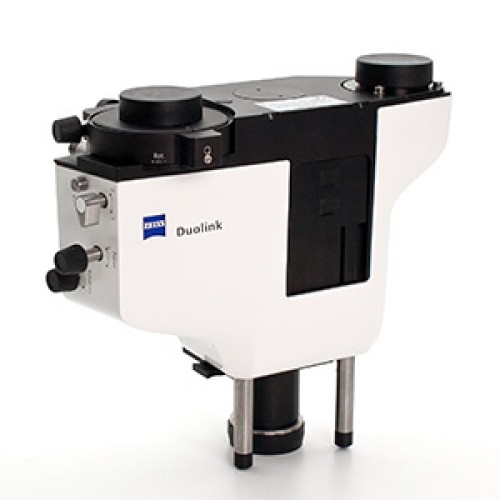

Double Adapter Duolink 60N
- 2x 60N man. for mounting two cameras and Dual Camera applications.
- interface to microscope: 60N
- interface to camera: 2x 60N, arranged in parallel
- distance of optical axes: 194 mm
- mounting orientation: horizontal, vertical
- laser safety: via Laser Safety Kit (optional)
- manual switching of light path via filter module (1 filter module with 100% mirror included)
- slider with calibration sample
- slider with bertrand optics for TIRF adjustment
- incl. Calibration Slide Universal D=0
- camera exit 2 adjustable in x/y +/- 1.3 mm, z +2/-13 mm relative to image plane of camera exit 1, rotation +/- 3°
- max. image field: 22 mm
- max. weight load: 5 kg for each camera exit
- height-adjustable supports
- dimensions: (W x D x H) ca. 280 mm x 310 mm x 170 mm (with supports), 156 mm (without supports)
- weight: ca. 6.2 kg
- 2x 60N man. for mounting two cameras and Dual Camera applications.
- interface to microscope: 60N
- interface to camera: 2x 60N, arranged in parallel
- distance of optical axes: 194 mm
- mounting orientation: horizontal, vertical
- laser safety: via Laser Safety Kit (optional)
- manual switching of light path via filter module (1 filter module with 100% mirror included)
- slider with calibration sample
- slider with bertrand optics for TIRF adjustment
- incl. Calibration Slide Universal D=0
- camera exit 2 adjustable in x/y +/- 1.3 mm, z +2/-13 mm relative to image plane of camera exit 1, rotation +/- 3°
- max. image field: 22 mm
- max. weight load: 5 kg for each camera exit
- height-adjustable supports
- dimensions: (W x D x H) ca. 280 mm x 310 mm x 170 mm (with supports), 156 mm (without supports)
- weight: ca. 6.2 kg
