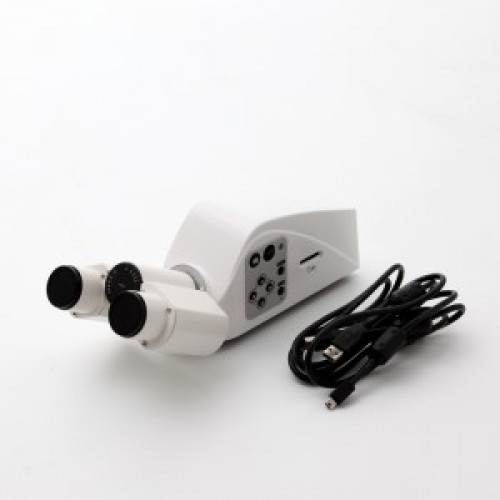

Tube HD 30°/20 with integrated HD IP Camera 5 MP for Primo Star

Tube HD 30°/20 with integrated HD IP Camera 5 MP for Primo Star Camera specification Sensor: Micron MT9P031, 5 Megapixels, color, CMOS Basic resolution: 2560 (H) x 1920 (V) = 5.0 Megapixels Pixel size: 2.2 µm x 2.2 µm Sensor size: 5.7 mm x 4.28 mm, equivalent to 1/2.5" (diagonal 7.1 mm) Live frame rate (depending on hardware and software configuration): H x V Frame rate 800 x 600 20 Live frame rate standalone via DVI-D (HDMI) : H x V Frame rate 1280 x 720 60 1920 x 1080 30 Digitization: 3 x 8 bit/pixel Integration time: 20 µs up to 2 s Interfaces: 1x SD card slot, 1x USB 2.0 (connection cable included), 1x DVI- D (HDMI), 1x Ethernet RJ45 100 Mbit, 1x IR sensor Spectral range: Approx. 400 nm-700 nm, IR filter Read-out mode: Progressive Registration: CE, FCC Class B, RoHS Ambient conditions: +5° ... +45° Celsius, max. 80% relative air humidity, no condensation, free air circulation required Power connection: External power supply USB 2.0 5V/1A 100...240VAC/50...60Hz with country-specific adapters Dual color LED: Power on and ready for capture (green); Recording (blinking green); Not ready (red); Error (blinking red) Integrated slot: SD card slot for SD and SDHC cards Control buttons: Image/Video capture, white balance, contrast, brightness, menu Supported operating systems: Windows 7 x32 Prof./Ultimate SP1 (ZEN 2012 lite), Windows 7 x64 Prof./Ultimate SP1 (ZEN 2 lite/pro/system) The camera is network-enabled and can be used with the ZEISS iPad App, Labscope or Matscope. The Apps are available as a free download from the Apple App Store. Unless otherwise stated by the distributor, iPad and WLAN router are not supplied by ZEISS.
