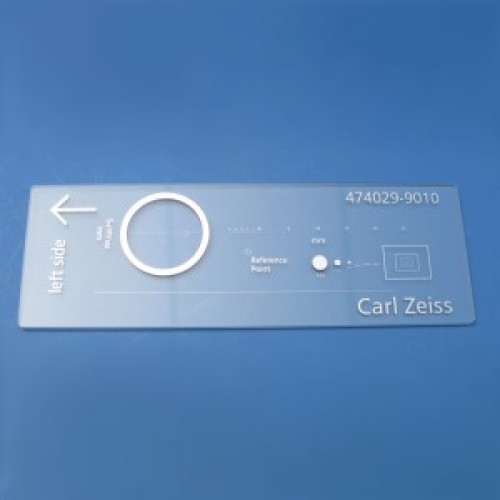

Calibration Slide Universal D=0 without coverslip; positive version
- high-precision object relocation
- position of reference mark relative to left and upper slide border X=38mm/Y=13mm, +/- 5µm
- line with 50mm length to control parallelism
- Stage micrometer functionality Micro and Stemi: 5 lines with 1mm intervals in y-direction 100 lines with 1/100mm intervals in y-direction 25 lines with 1mm intervals in x-direction 50 lines with 1/10mm intervals in x-direction
- circle areas with diameter 2.5/1.0/0.5/0.1/0.05/0.01mm
- concentrical retangles 8x6/4x3/2x1.5/1x0.75mm
- high-precision object relocation
- position of reference mark relative to left and upper slide border X=38mm/Y=13mm, +/- 5µm
- line with 50mm length to control parallelism
- Stage micrometer functionality Micro and Stemi: 5 lines with 1mm intervals in y-direction 100 lines with 1/100mm intervals in y-direction 25 lines with 1mm intervals in x-direction 50 lines with 1/10mm intervals in x-direction
- circle areas with diameter 2.5/1.0/0.5/0.1/0.05/0.01mm
- concentrical retangles 8x6/4x3/2x1.5/1x0.75mm
